Techno Three Phase Din Rail Mount Multi Function

Send Inquiry

Request To Call Back

Techno Three Phase Din Rail Mount Multi Function

Price 1690.0 INR/ Piece

Get a Price/Quote

MOQ : 5 Pieces

Techno Three Phase Din Rail Mount Multi Function Specification

Pressure
Atmospheric

Resistant Feature
Heat and shock resistant

Accuracy
Class 1.0

Batteries Type
No batteries required

Usage & Applications
Three phase energy monitoring for panels, industrial, commercial automation

Product Type
Din Rail Mount Multi Function Meter

Material
Polycarbonate Body

Measuring Voltage Range
80V - 500V AC (Phase to Neutral)

Operating Temperature
-20C to +55C

Frequency (MHz)
50/60 Hz

Insulation Box
High grade insulated flame retardant enclosure

Protection System
Over-voltage, Under-voltage, Over-current protection

Size
Compact DIN Rail 3-Phase module

Color
White / Light Grey

Dimension (L*W*H)
90mm x 70mm x 65mm

Weight
Approx. 250g

Auxiliary Supply
230V AC

Display Type
Digital LED/LCD

Phase
Three Phase

Communication
RS485 MODBUS (optional)

Current Range
0.1-100A

Output
Pulse output for energy metering

Power Consumption
<2VA

Mounting Type
35mm DIN Rail Mount

Standards Compliance
IEC62052-11, IEC62053-21

Ingress Protection
IP20

Data Storage
Non-volatile memory

Techno Three Phase Din Rail Mount Multi Function Trade Information

Minimum Order Quantity
5 Pieces

Payment Terms
Cash Advance (CA)

Packaging Details
As Per Customer's Request

Main Domestic Market
All India

Certifications
ISO Certified Company

About Techno Three Phase Din Rail Mount Multi Function

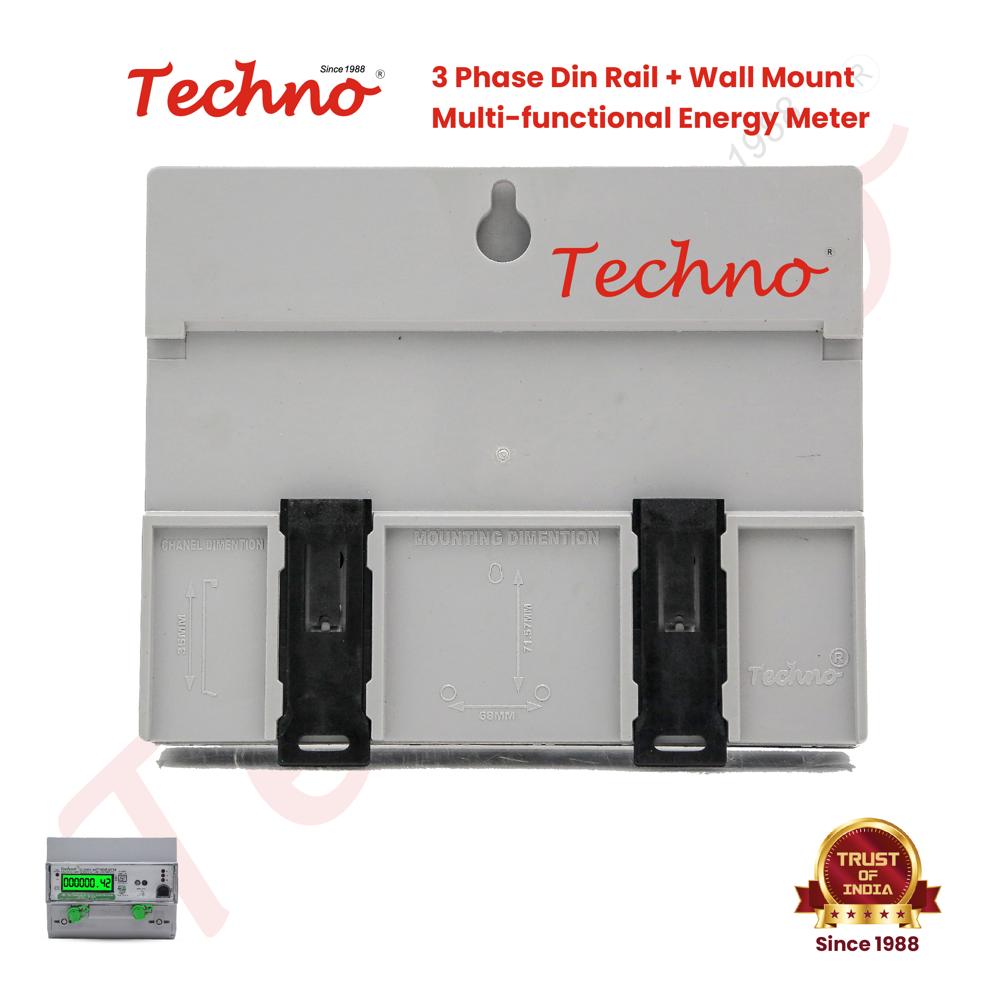

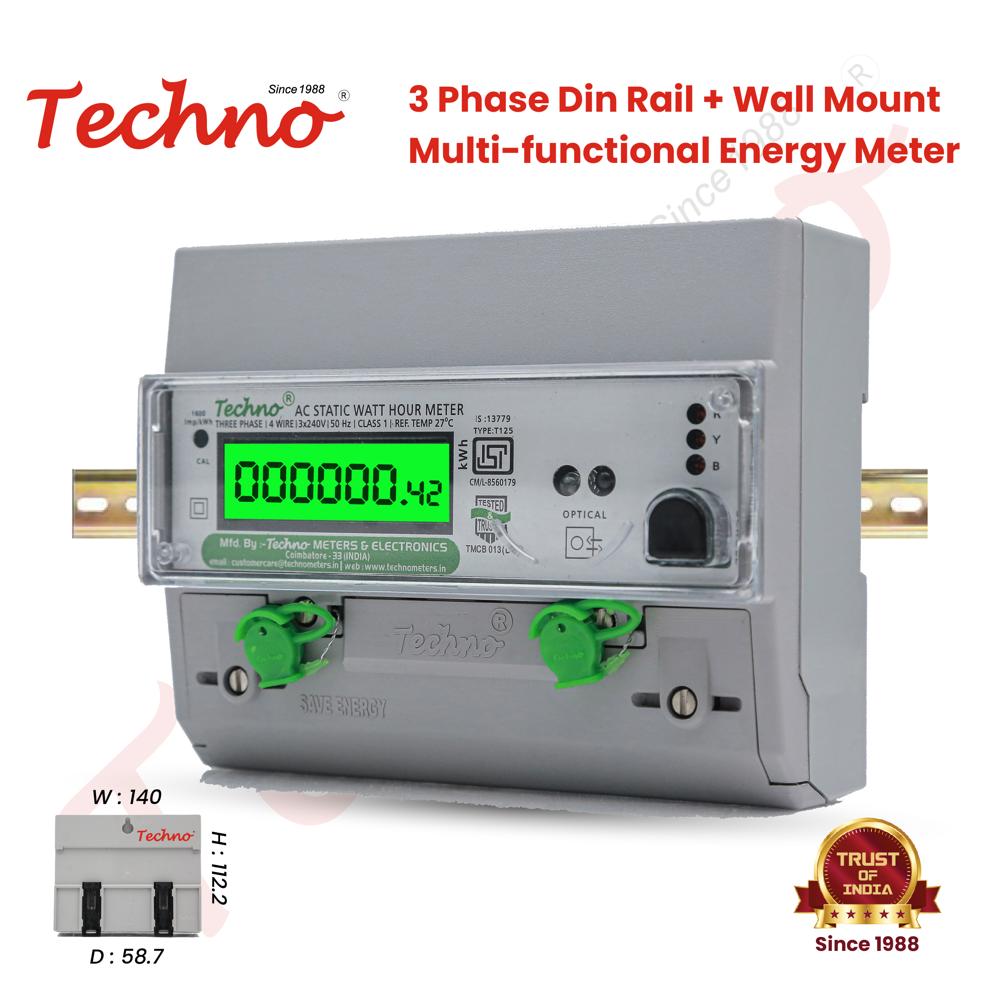

Three Phase Din Rail Mount Energy Meter is capable for Multi Mounting option (Wall Mount, Din Mount, Panel Mount) & Showing Multifunctional Parameters with High Accuracy LCD Display (kWh, watt, Volt, Amps, Hz).

Comprehensive Three-Phase Energy Monitoring

Monitor vital energy metrics with a Class 1.0 accuracy instrument suitable for panels in industrial and commercial automation setups. The digital LED/LCD display provides instant results, ensuring you always have a clear view of consumption and load conditions.

Robust Design and Secure Operation

Crafted from polycarbonate, the insulated enclosure is highly resistant to heat and shocks, offering dependable flame-retardant protection. The meter complies with IEC standards and provides IP20 ingress protection, ensuring longevity and operator safety in challenging environments.

Flexible Installation and Communication

The compact module mounts easily on a 35mm DIN rail. Optional RS485 MODBUS enables seamless integration with automation or building management systems, and pulse output facilitates advanced energy metering applications.

FAQ's of Techno Three Phase Din Rail Mount Multi Function :

Q: How is the Techno Three Phase DIN Rail Meter installed in a panel?

A: The meter is designed for easy installation on standard 35mm DIN rails commonly found in electrical panels. Simply align the device with the DIN rail and snap it into place for secure mounting.

Q: What benefits does the digital LED/LCD display provide during operation?

A: The digital LED/LCD display offers real-time visibility of key parameters such as current, voltage, and energy usage, facilitating quick diagnostics and efficient monitoring without the need for additional equipment.

Q: When should I use the RS485 MODBUS communication option?

A: Enable the RS485 MODBUS interface when you wish to integrate the meter with building automation or energy management systems, allowing remote data collection and monitoring through industry-standard protocols.

Q: Where is this multi-function meter typically used?

A: This meter is ideal for three-phase energy monitoring in industrial control panels, commercial facilities, and automated systems requiring accurate load measurement and protection.

Q: What protection features are included with this meter?

A: The meter incorporates over-voltage, under-voltage, and over-current protection systems. These features help prevent damage to equipment and ensure safe energy monitoring under varying operating conditions.

Q: How is data stored and preserved in the device?

A: All measurement data is retained in non-volatile memory, ensuring that information is preserved even in the event of a power outage or sudden voltage fluctuation.
