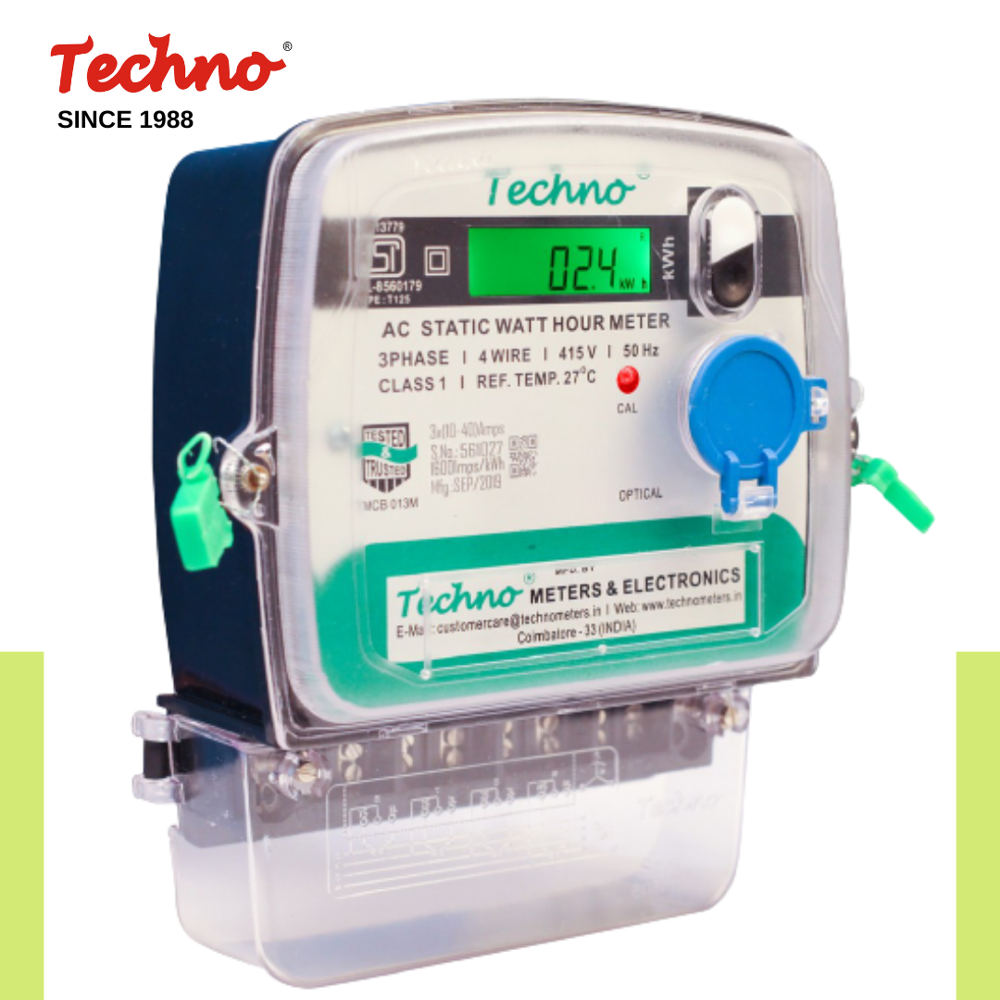

Three Phase Energy Meters With Optical Communication

Send Inquiry

Request To Call Back

Three Phase Energy Meters With Optical Communication

Price 1770.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Three Phase Energy Meters With Optical Communication Specification

Resistant Feature
UV resistant, shock and temperature resistant

Accuracy
Class 1.0 or Class 0.5

Usage & Applications
Commercial and industrial three-phase power measurement & monitoring

Pressure
Ambient atmospheric

Batteries Type
Lithium battery for memory backup

Product Type
Three Phase Energy Meter with Optical Communication

Material
Flame retardant polycarbonate

Measuring Voltage Range
3x230/400V AC

Operating Temperature
-10C to +55C

Frequency (MHz)
50 Hz

Insulation Box
Yes, high grade polycarbonate enclosure

Protection System
Over-voltage, over-current, short-circuit, and anti-tampering features

Size
Standard DIN rail mount

Color
Grey (Body) with transparent window

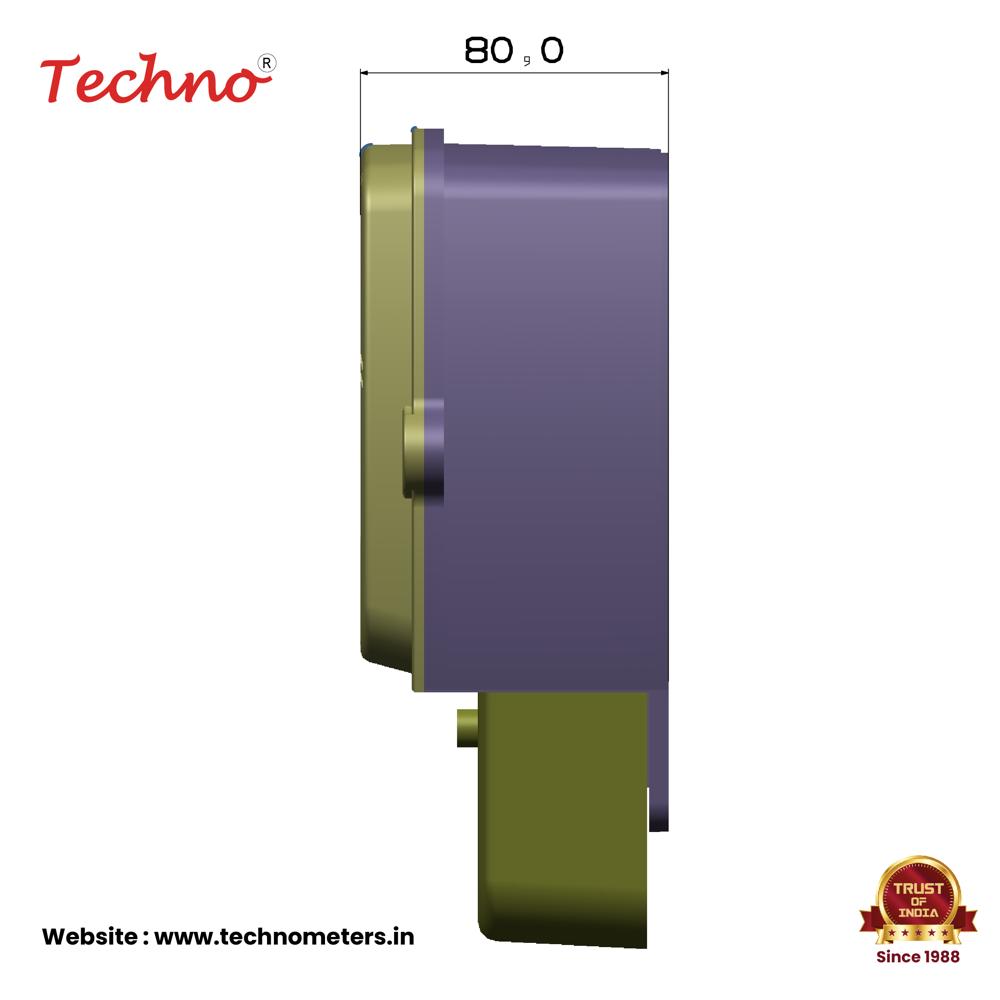

Dimension (L*W*H)
260 mm x 170 mm x 80 mm

Weight
Approx. 1.5 kg

Display Type
LCD with backlight

Current Rating
5-10A base, up to 100A max

Communication Interface
Optical port for remote reading (IEC 62056-21/DLMS protocol)

Anti-tampering Features
Magnetic immunity, sealed terminals, event logging

IP Rating
IP54

Mounting Type
Wall and DIN rail mount compatible

Memory Backup
Non-volatile memory, EEPROM

Automatic Meter Reading
Supported via optical communication

Power Consumption
<2W, <10VA per phase

Three Phase Energy Meters With Optical Communication Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash Advance (CA)

Packaging Details
As Per Customer's Request

Main Domestic Market
All India

Certifications
ISO Certified Company

About Three Phase Energy Meters With Optical Communication

Access advanced electricity measurement with these meritorious Three Phase Energy Meters featuring Optical Communication. Designed for commercial and industrial sites, they incorporate a venerable LCD with backlight, fresh anti-tampering elements, and valuable IP54 protection. Supporting remote reading via an optical port (IEC 62056-21/DLMS), their robust polycarbonate body ensures reliability under diverse conditions. The non-volatile EEPROM memory, shock and UV resistance, short-circuit and over-voltage safeguards underscore their durable and trustworthy design. Experience precision and safety in every valuable measurement, suitable for a range of critical applications.

Designed for Versatility and Performance in Industrial and Commercial Sites

These Three Phase Energy Meters are expertly engineered for use in commercial complexes and industrial facilities where accurate energy monitoring is crucial. Their fresh features, such as LCD display with backlight and robust anti-tampering technologies, ensure meritorious performance and reliable operation. Suitable for mounting on a wall or DIN rail, they accommodate a wide measuring voltage range and offer easy remote reading via a venerable optical port, making them valuable for modern energy management.

Packaging Assurance, Flexible Sample Policy, and Reliable Supply

Each meter is carefully packaged to safeguard its valuable components during transport. We offer quick dispatch options to ensure timely proposal amount responses for your project needs. Sample policies are flexible to allow you to verify the product before larger commitments. With a robust supply ability, we stand ready to meet bulk order offers and maintain consistent delivery timelines for industrial or commercial clients.

FAQ's of Three Phase Energy Meters With Optical Communication:

Q: How does the optical communication feature benefit users of these energy meters?

A: The optical communication interface enables remote meter reading and data logging, allowing for efficient monitoring and management without physical meter access. This streamlines data collection for billing and analysis.

Q: What anti-tampering measures are included in the meter design?

A: These meters feature magnetic immunity, sealed terminals, and event logging capabilities, offering enhanced security against unauthorized access or tampering attempts.

Q: Where can these Three Phase Energy Meters be installed?

A: They are designed for easy installation on either walls or DIN rails, making them suitable for a wide range of commercial and industrial settings.

Q: What is the process for memory backup during a power outage?

A: The meters use non-volatile EEPROM memory and a lithium battery, ensuring that billing data and event logs are safely retained even during power interruptions.

Q: Which power rating and environmental conditions are these meters most suitable for?

A: They are intended for use in three-phase systems with a current rating of 5-10A base (up to 100A max) and can operate reliably in temperatures ranging from -10C to +55C, under ambient atmospheric pressure.
