LT Panel 3 Phase Meter

Price 2860.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

LT Panel 3 Phase Meter Specification

Usage & Applications
Industrial Power Distribution, Electrical Control Panels, Commercial Complexes

Pressure
Atmospheric

Resistant Feature
Corrosion and Dust Resistant

Accuracy
Class 1.0

Batteries Type
Not Required (AC Powered)

Product Type
LT Panel 3 Phase Meter

Material
High Grade Mild Steel with Powder Coating

Measuring Voltage Range
0 - 440V AC

Operating Temperature
-10C to +55C

Frequency (MHz)
50 Hz (Nominal)

Insulation Box
Yes, Provided for Safety

Protection System
Over-Voltage, Over-Current, Short Circuit

Size
Standard or Customized Options Available

Color
Grey / White (as shown in image)

Dimension (L*W*H)
600 mm x 400 mm x 200 mm (approx.)

Weight
12 Kg (approximately)

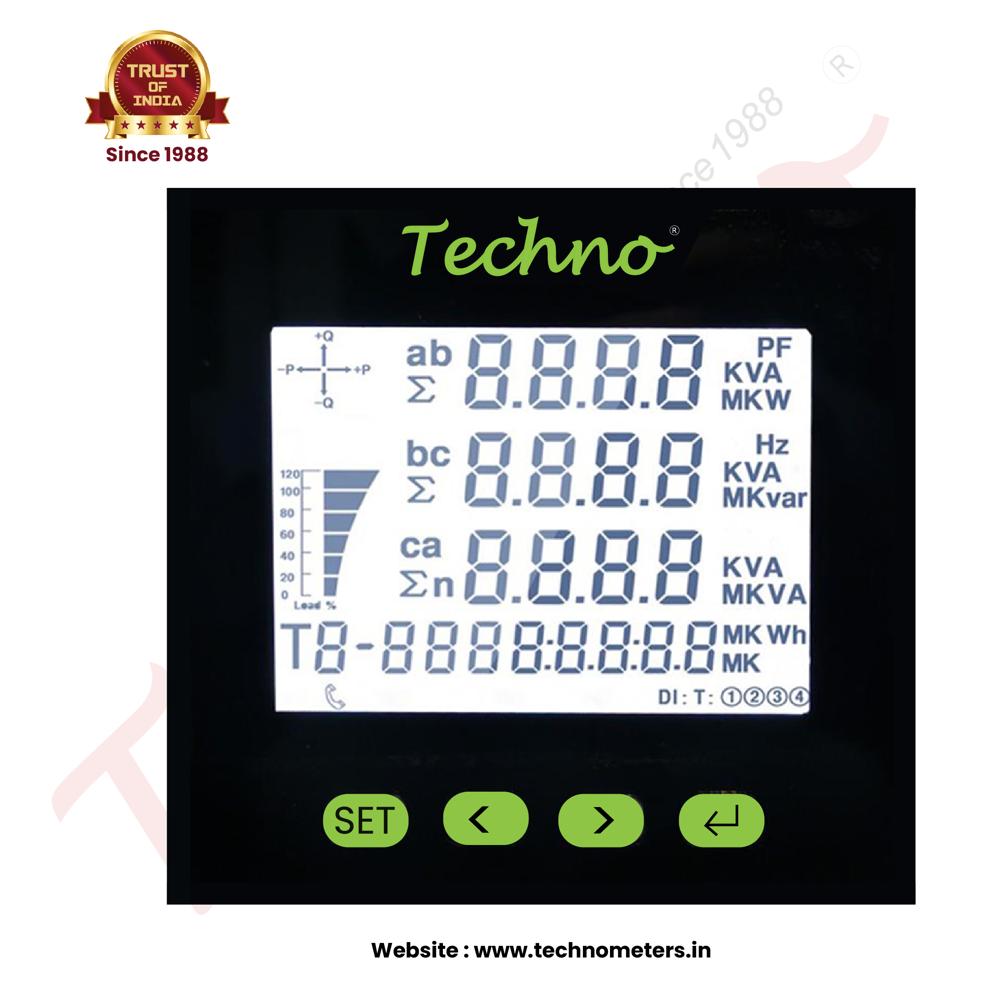

Display Type
Digital LED/LCD Display

Panel Finish
Epoxy Powder Coated for Long Life

Ingress Protection
IP54

Auxiliary Supply
220V AC / 110V AC

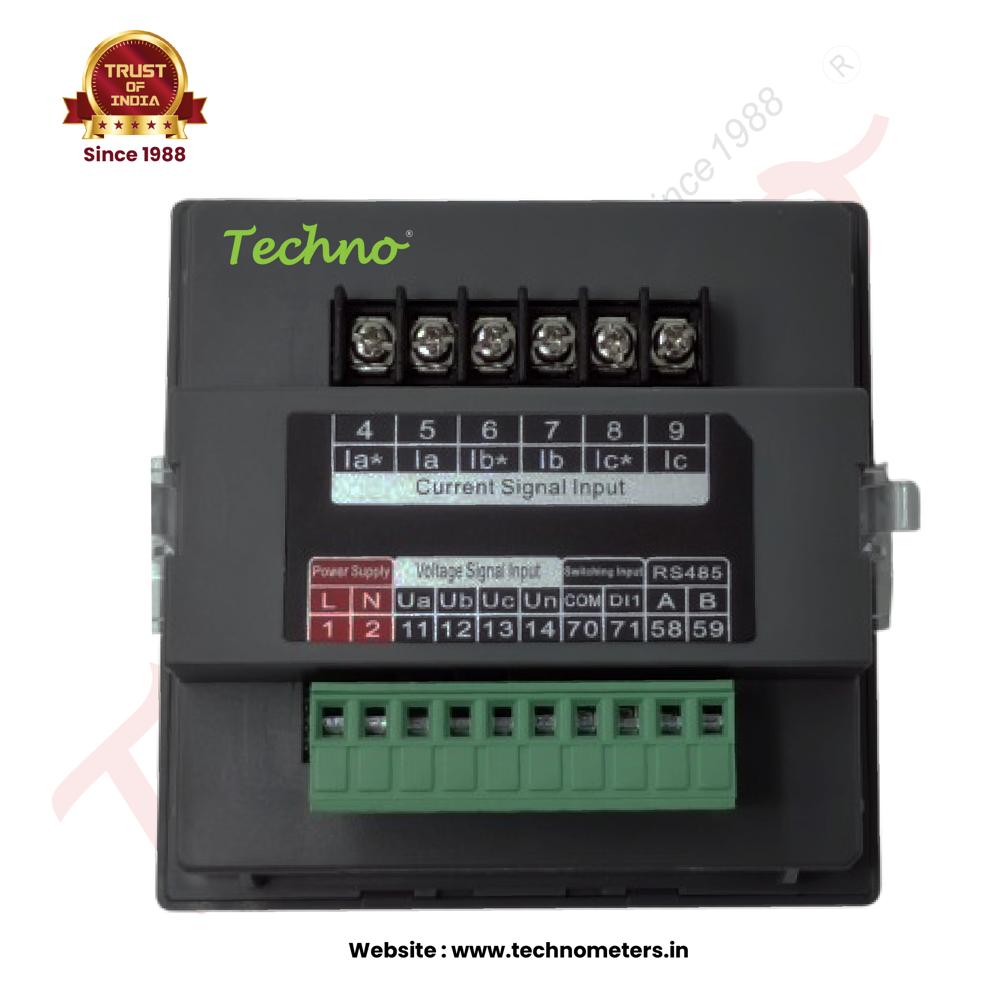

Terminals
Copper/Brass Terminals for Superior Conductivity

Phase
Three Phase

Input Type
Three Phase Input

Wiring Type
4 Wire System

Mounting Type
Wall Mounted / Floor Mounted

Control Options
MCB, ELCB, Isolator Switch provided

Ambient Humidity
Up to 95% (Non-condensing)

Current Rating
Up to 100A

LT Panel 3 Phase Meter Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash Advance (CA)

Packaging Details
As Per Customer's Request

Main Domestic Market
All India

Certifications
ISO Certified Company

About LT Panel 3 Phase Meter

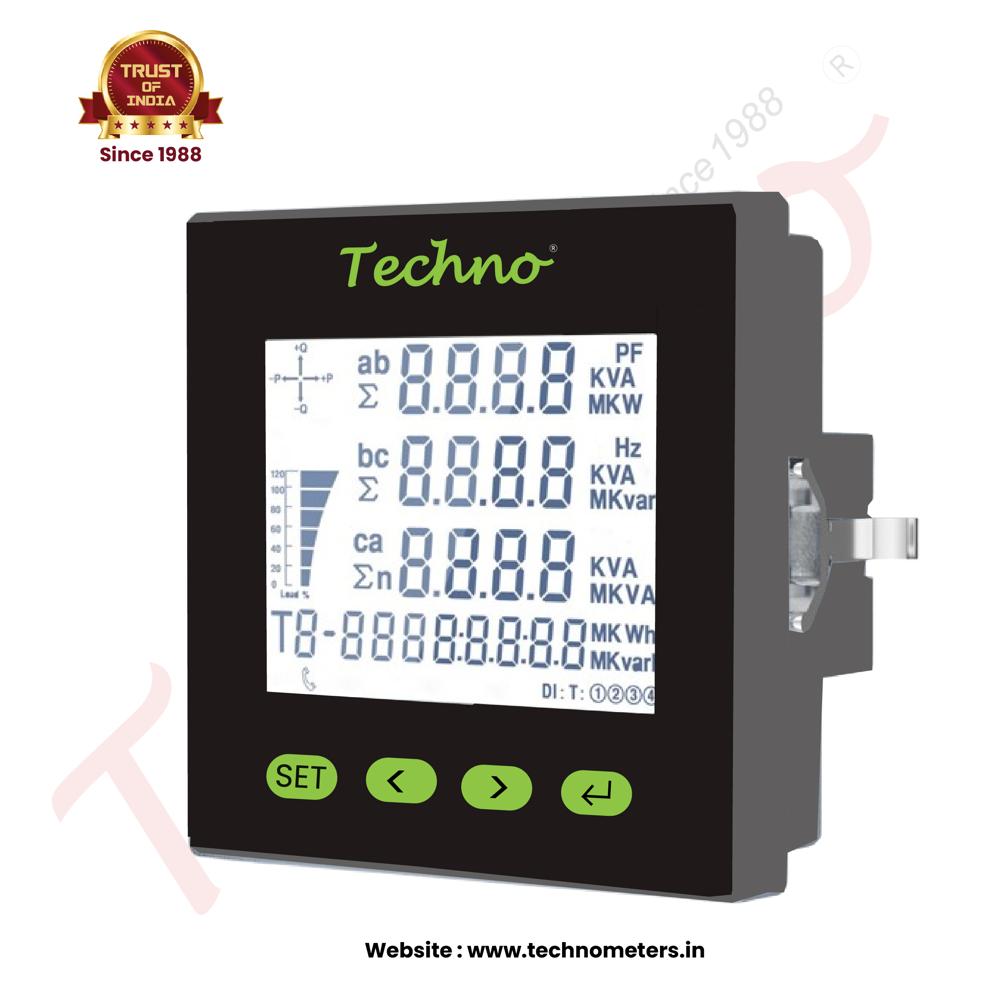

The three-phase multi-function meter is designed for the electric power intelligent monitoring and electric energy metering needs of electric power system, industrial and mining enterprises, public facilities, intelligent buildings and so on, high-precision measurement of all common power parameters in three-phase grid: three-phase voltage, three-phase current, active power, reactive power, apparent power, frequency, power factor, and with 485 communication functions.

Efficient Power Monitoring

This LT Panel delivers precise monitoring of three-phase electrical systems, suitable for both industrial and commercial applications. The digital LED/LCD display allows operators to access real-time data, helping maintain consistent and reliable power distribution throughout your facility. The panel's measurement accuracy supports optimal electrical performance and operational safety.

Durable Construction and Safety

Manufactured using high-grade mild steel and finished with epoxy powder coating, the panel is highly resistant to corrosion and dust. With an IP54 rating and built-in insulation box, it guarantees personnel and equipment safety even under challenging environmental conditions. Multiple protection systems ensure reliable functioning and protection from electrical faults.

Flexible Application and Easy Installation

Designed for versatile use, the LT Panel can be wall or floor-mounted based on your site requirements. Customizable sizing, copper or brass terminals, and a 4-wire system make installation straightforward for electrical professionals. Its ability to function seamlessly in high-humidity and varying temperatures widens its application scope in diverse settings.

FAQ's of LT Panel 3 Phase Meter:

Q: How is the LT Panel 3 Phase Meter installed-wall mounted or floor mounted?

A: The LT Panel 3 Phase Meter is designed for flexible installation; it can be wall-mounted or floor-mounted based on your available space and infrastructure requirements. This allows easy adaptation to various industrial or commercial setups.

Q: What benefits does the digital LED/LCD display provide in this panel?

A: The digital LED/LCD display offers clear, real-time readings of electrical parameters, enhancing monitoring precision and operational convenience. This feature simplifies data interpretation and supports quick troubleshooting, boosting overall system reliability.

Q: Where can the LT Panel 3 Phase Meter be effectively used?

A: This panel is suitable for a range of environments, including industrial power distribution areas, electrical control rooms, and commercial complexes, owing to its robust construction, comprehensive protection features, and adaptability to harsh conditions.

Q: What protection mechanisms are included in the LT Panel for operational safety?

A: The panel comes equipped with multiple safety controls including MCB (Miniature Circuit Breaker), ELCB (Earth Leakage Circuit Breaker), and an isolator switch. It also provides protection against over-voltage, over-current, and short circuits, ensuring safe operation.

Q: How does the panel handle varying environmental conditions?

A: With an ingress protection (IP54) rating, epoxy powder coating, and resistance to corrosion and dust, the panel is designed to operate reliably in humid environments (up to 95% non-condensing humidity) and a wide temperature range from -10C to +55C.

Q: What is the process for customizing the LT Panel to fit specific requirements?

A: The LT Panel can be tailored to your specifications regarding size, color (grey or white), and mounting type. Share your requirements with the manufacturer or supplier, and they will provide guidance and deliver a solution that fits your operational needs.
