TECHNO 1ph Block Energy Meter Terminals

Name: TECHNO 1ph Block Energy Meter Terminals
Brand: TECHNO METERS ELECTRONICS
Price: 160 INR
Availability: InStock

Price 160 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

TECHNO 1ph Block Energy Meter Terminals Specification

Humidity %
Up to 95% RH

Equipment Type
Single Phase Block Energy Meter Terminal

Resolution
Standard terminal block resolution for secure connection

Measurement Range
Up to 60A

Connectivity Type
Screw terminal block

Frequency
45 65 Hz Hertz (HZ)

Current Range
10A 60A Ampere (A)

Temperature Range
-10C to +60C Celsius (oC)

Material
High-grade brass contacts with flame-retardant polycarbonate body

Power Supply
230V AC, 50Hz

Power Consumption
Low (<2 VA) Volt (V)

Display Type
Analog/Block Terminal

Range
Suitable for residential and commercial energy meters

Wire Size Compatibility
Accepts wire sizes up to 16 mm²

Applications
Ideal for utility energy meter installations and replacements

Color
Translucent/clear housing with metallic contacts

Mounting Options
DIN rail and panel mounting compatible

Terminal Size
Standard meter block dimensions as per IS/IEC standards

Contact Finish
Nickel-plated for enhanced conductivity and corrosion resistance

Protection Class
IP20 (finger-safe) enclosure

Service Life
Designed for >10 years operational use

Torque Rating
Recommended tightening torque: 2.2 Nm

TECHNO 1ph Block Energy Meter Terminals Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

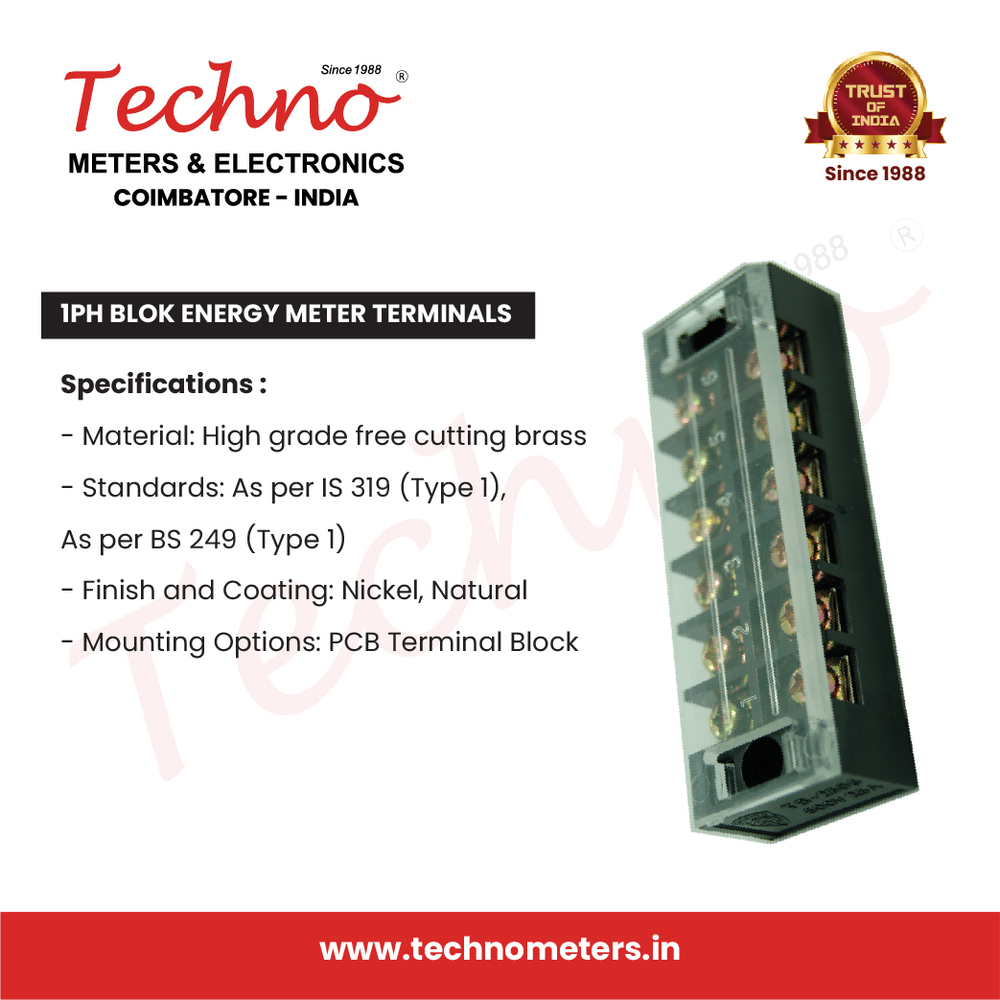

About TECHNO 1ph Block Energy Meter Terminals

Specifications :

- Material: High grade free cutting brass

- Standards: As per IS 319 (Type 1), As per BS 249 (Type 1)

- Finish and Coating: Nickel, Natural

- Mounting Options: PCB Terminal Block

Versatile Mounting and Broad Compatibility

This terminal block seamlessly fits standard meter block dimensions as per IS/IEC standards, supporting both DIN rail and panel mounting. Its user-oriented compatibility makes it suitable for energy meters in various residential and commercial applications, simplifying installation and maintenance tasks for installers and end-users alike.

Robust Protection and Longevity

With an IP20 rating, the unit provides finger-safe operation, crucial for safety in meter boards and enclosures. Crafted from flame-retardant polycarbonate and featuring nickel-plated brass contacts, it guarantees sustained performance and reliability for more than ten years, even under demanding environmental conditions.

Safe and Efficient Operation

Engineered for operational convenience, this terminal block accommodates up to four meter connections and supports a wide current range from 10A to 60A. The design ensures low power consumption, high accuracy (Class 1.0), and easy installation with a recommended tightening torque of 2.2 Nm for dependable connectivity.

FAQs of TECHNO 1ph Block Energy Meter Terminals:

Q: How do I install the TECHNO 1ph Block Energy Meter Terminal in my existing energy meter setup?

A: Installation is straightforward, thanks to compatibility with both DIN rail and panel mounting options. Secure the terminal block onto your chosen mounting surface, connect wires (up to 16 mm) using the screw terminals, and ensure each terminal is tightened to the recommended 2.2 Nm torque for a safe, reliable connection.

Q: What are the primary applications of this terminal block?

A: This product is ideal for utility energy meter installations and replacements, serving both residential and commercial environments. Its robust build and high compatibility make it suitable for new installations as well as for upgrading existing setups.

Q: When should I consider replacing or upgrading my meter terminal block?

A: Replacement is advisable if your existing meter terminal shows signs of wear, corrosion, or electrical faults. Upgrading to this model offers improved conductivity, enhanced safety features, and a design life exceeding 10 years for peace of mind.

Q: Where can the TECHNO terminal block be used considering environmental conditions?

A: The terminal block is engineered to operate reliably in environments with temperatures from -10C to +60C and humidity levels up to 95% RH, making it suitable for most installation settings across India.

Q: What are the benefits of the nickel-plated contacts and flame-retardant polycarbonate body?

A: Nickel-plated contacts enhance electrical conductivity and resist corrosion, ensuring long-lasting, secure connections. The flame-retardant polycarbonate housing adds an extra layer of safety, protecting against electrical fire risks and mechanical impacts.

Q: How does the IP20 protection rating improve safety?

A: The IP20 finger-safe enclosure protects users during installation and operation, preventing accidental contact with live components and reducing the risk of electrical shocks.

Q: What is the process for ensuring secure connections during installation?

A: For optimal performance, strip wire ends properly, insert them into the screw terminals, and tighten each screw to 2.2 Nm. Double-check that all connections are firm and that the block is properly seated on the DIN rail or panel.
