Single Phase Energy LCD Meter With Polycarbonate box

Name: Single Phase Energy LCD Meter With Polycarbonate box
Brand: TECHNO METERS ELECTRONICS
Price: 680 INR
Availability: InStock

Price 680 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Single Phase Energy LCD Meter With Polycarbonate box Specification

Diameter
N/A (Box dimensions applicable)

Temperature Range
-10C to +55C

Humidity %
Up to 95% RH, non-condensing

Protection
IP54 Protection with Polycarbonate Box

Frequency
50 Hz

Equipment Type
Single Phase Electronic Energy Meter

Measurement Range
10-60A

Connectivity Type
Terminal Block Type

Resolution
0.01 kWh

Sensor Type
Electronic Sensor

Current Range
10-60A

Application Media
Electrical Energy Measurement

Capacity
Up to 60A Class meter

Usage
Industrial

Material
Polycarbonate Box with Flame Retardant Construction

Power Supply
230V AC, 50Hz

Power Consumption
Less than 2W

Product Type
Single Phase Energy Meter + Box

Weight
2 Kilograms (kg)

Accuracy
Class 1

Display Type
LCD Display

Range
0-99999.99 kWh

Terminal Capacity
Capable of 16mm2 Cable

Pulse Output
LED Pulse Output for Calibration

Sealing Provision
Tamper Proof Polycarbonate Enclosure

Data Retention
EEPROM Memory Retention

Mounting Type
Wall Mount

Standards Compliance
IS 13779 / IEC 62053-21

Starting Current
0.2% of Ib

Box Color
Transparent/Translucent Grey

Display Features
Auto Scroll for Multiple Parameters

Backup
Battery for RTC (Real Time Clock)

Single Phase Energy LCD Meter With Polycarbonate box Trade Information

Minimum Order Quantity
10 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
1 Months

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
As Per Industry Standard

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO Certified

About Single Phase Energy LCD Meter With Polycarbonate box

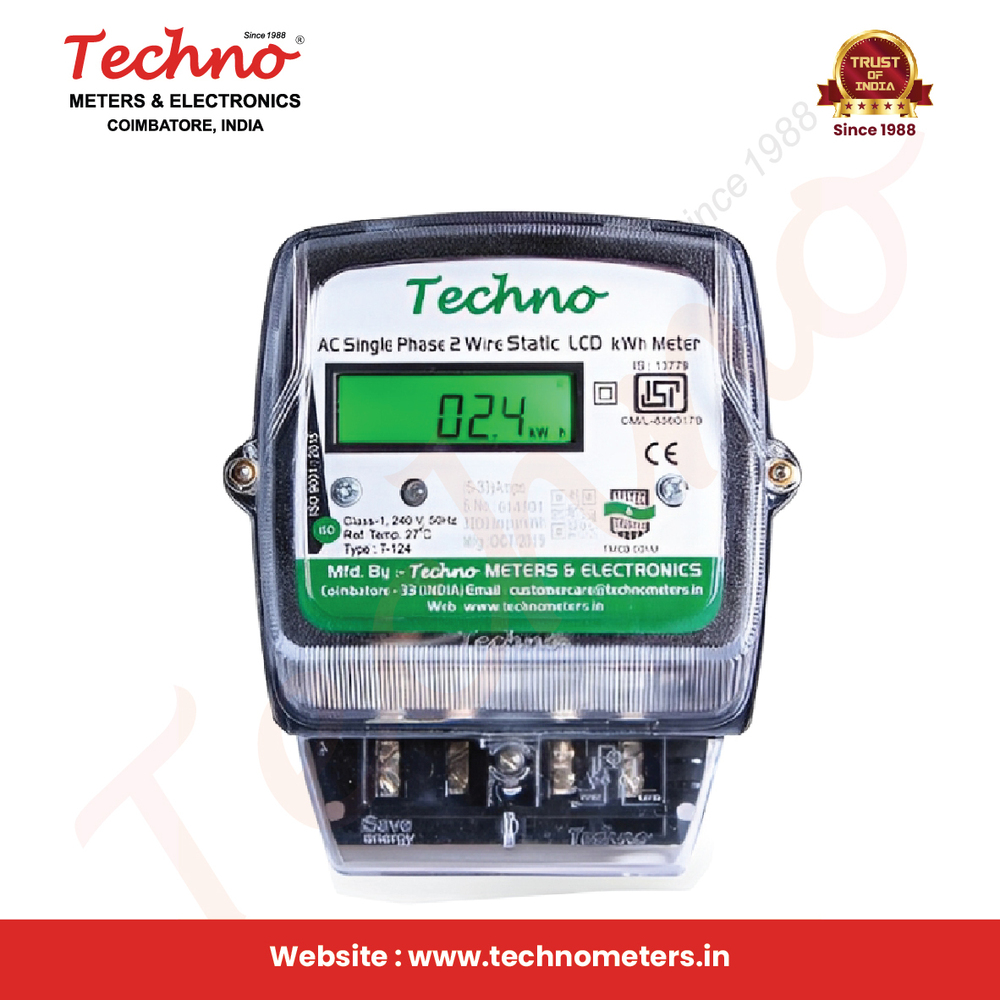

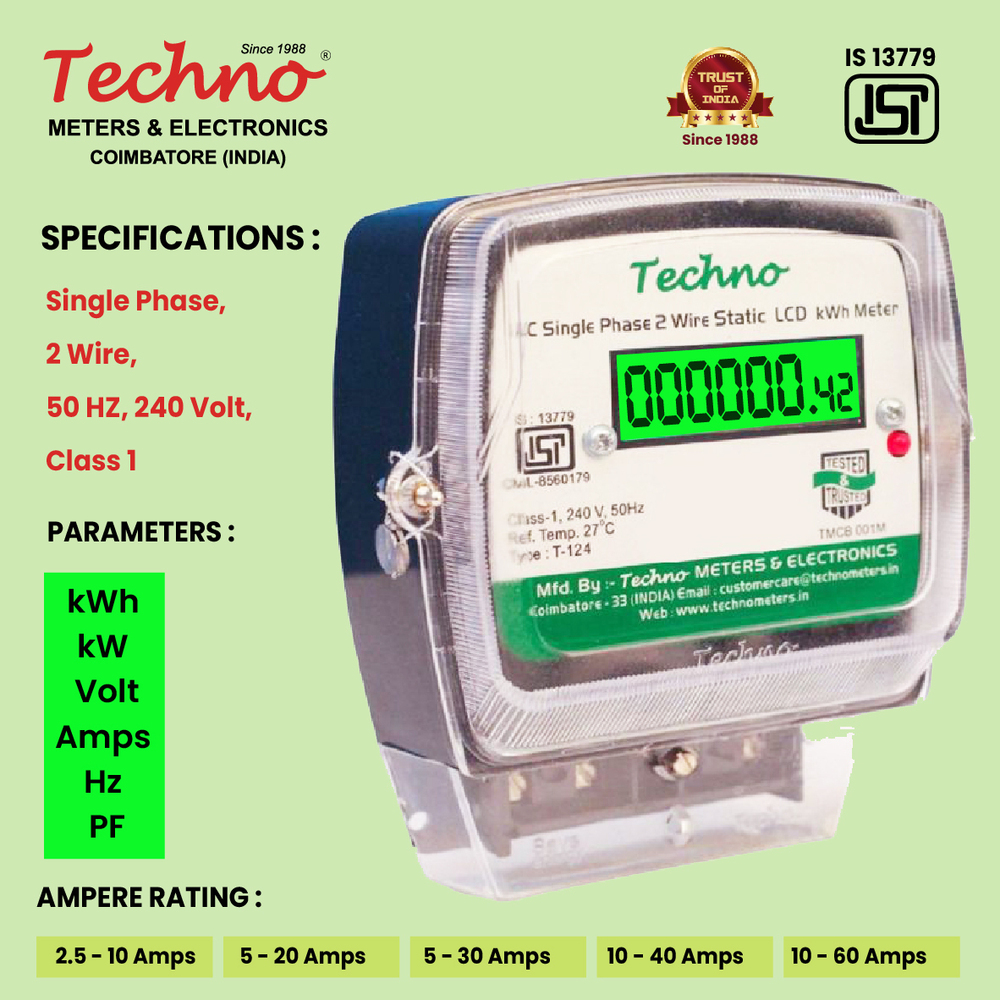

AC Single Phase two wire Techno make Multifunctional Energy Meter with Class 1 Accuracy and Certified with BIS

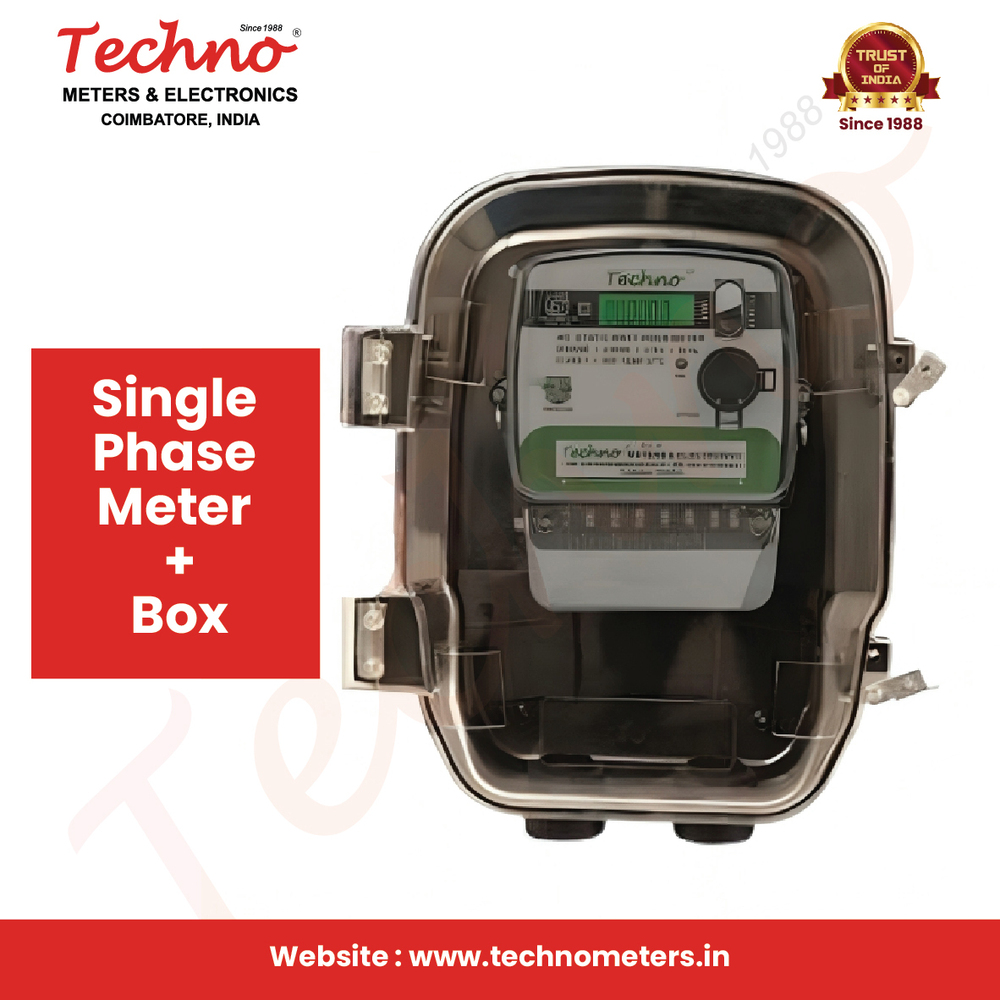

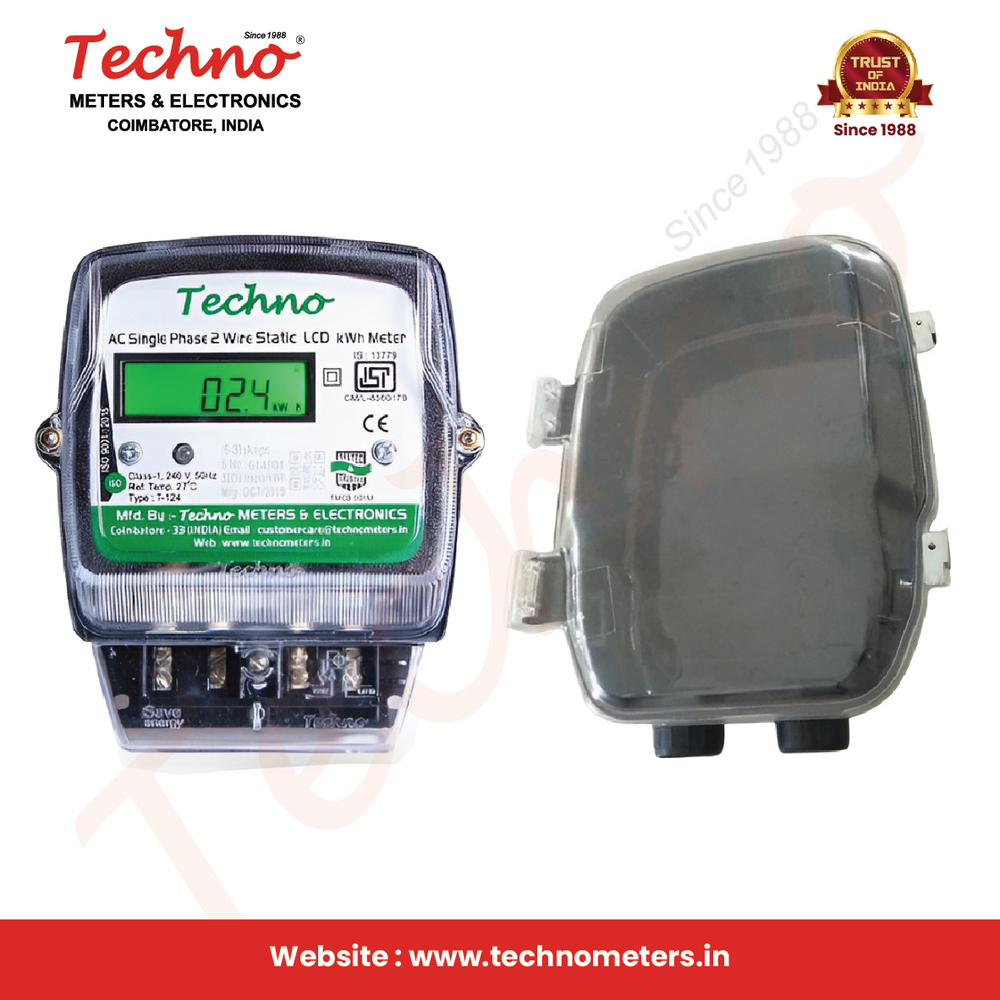

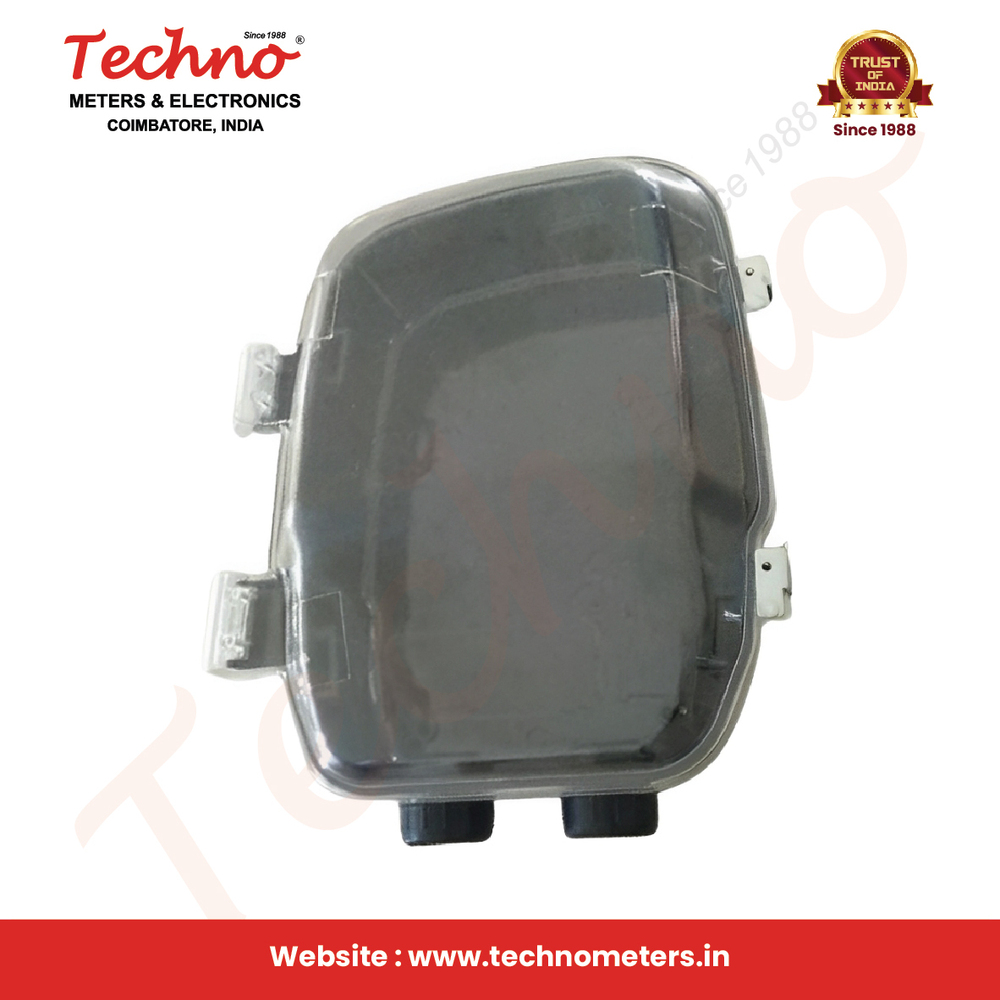

Single phase polycarbonate energy meter enclosure with 2 gland and hinge type Locking Provision can use for avoid meter tempering.

Superior Accuracy and Compliance

This energy meter delivers Class 1 accuracy and complies with essential international and national standards, specifically IS 13779 and IEC 62053-21, ensuring trustworthy readings for industrial applications. Its starting current sensitivity of 0.2% Ib ensures precise recording, making it ideal for various energy monitoring needs.

Robust and Secure Design

Encased in a flame-retardant polycarbonate box with tamper-proof sealing, the device stands up to industrial wear and environmental challenges. IP54 protection safeguards against dust and water splashes, while the transparent/translucent grey enclosure allows easy inspection and readability.

Advanced Features for Seamless Energy Monitoring

Equipped with an auto-scroll LCD display and an LED pulse output for quick calibration, the meter offers effortless parameter tracking. EEPROM memory retention and RTC battery backup safeguard data integrity, while its user-friendly terminal block accommodates up to 16mm2 cables, supporting straightforward installation and maintenance.

FAQ's of Single Phase Energy LCD Meter With Polycarbonate box:

Q: How is the Single Phase Energy LCD Meter installed for use?

A: This meter is designed for secure wall mounting using the provided polycarbonate box. Simply follow the manufacturer's installation guidelines to connect cables (up to 16mm2 terminal capacity) via the terminal block, ensuring proper sealing for tamper-proof operation.

Q: What are the main benefits of using this energy meter for industrial applications?

A: Key benefits include high-accuracy Class 1 measurement, robust tamper-proof construction, compliance with IS 13779/IEC 62053-21, reliable EEPROM memory retention, RTC backup, and resilience against harsh environmental conditions, making it ideal for demanding industrial environments.

Q: When should the device's battery for RTC (Real Time Clock) be replaced?

A: The built-in battery for RTC is long-lasting and typically only needs replacement after several years of operation or when timekeeping deviations are observed. Consult the user manual or supplier for recommended maintenance intervals.

Q: What data can be viewed on the LCD display?

A: The auto-scroll LCD display provides multiple parameters, including current, voltage, energy consumed (up to 99999.99 kWh), and more. This feature allows users to easily monitor relevant energy usage data without manual intervention.

Q: Where can this energy meter be effectively applied?

A: It is primarily designed for industrial applications, such as factories, plants, or large commercial establishments requiring reliable single-phase electrical energy measurement within the 10-60A current range.

Q: How does the meter ensure data and operational security?

A: Data retention is provided by EEPROM memory, while the real-time clock has battery backup. The flame-retardant, polycarbonate box is tamper-proof and sealed, ensuring protection against unauthorized access and harsh conditions, and its IP54 rating guards against dust and moisture.
