Vaf Pf meter Class 1 LCD Panel Meter

Price 590.00 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Vaf Pf meter Class 1 LCD Panel Meter Specification

Resolution
1 count

Measurement Range
Voltage: 0-500V | Current: 0-5A | Frequency: 45-65Hz

Connectivity Type
Panel Mount

Frequency
45-65Hz

Humidity %
Up to 95% RH

Sensor Type
Internal Electronic

Capacity
Rated for 1-phase & 3-phase systems

Current Range
0-5A (through CT)

Temperature Range
-10C to 60C

Material
ABS Plastic

Power Supply
230V AC, 50/60Hz

Power Consumption
Less than 5VA

Accuracy
Class 1

Display Type
LCD

Range
0-9999 (display)

Indication
Displays Voltage, Ampere, Frequency, Power Factor

Dimensions
96 mm x 96 mm x 60 mm

Compliance
Meets IEC standards

Color
Black

Operating Principle
True RMS measurement

Mounting
Flush mounting in panel cut-out 96x96 mm

Protection
IP50 (Front panel)

Model
VAF/PF Class 1

Sampling Rate
High speed digital sampling

Weight
Approx. 250g

Equipment Type
VAF PF LCD Panel Meter

Data Retention
Auto memory retention after power loss

Vaf Pf meter Class 1 LCD Panel Meter Trade Information

Minimum Order Quantity
10 Pieces

Sample Policy
Contact us for information regarding our sample policy

Main Export Market(s)
Asia

Main Domestic Market
All India

About Vaf Pf meter Class 1 LCD Panel Meter

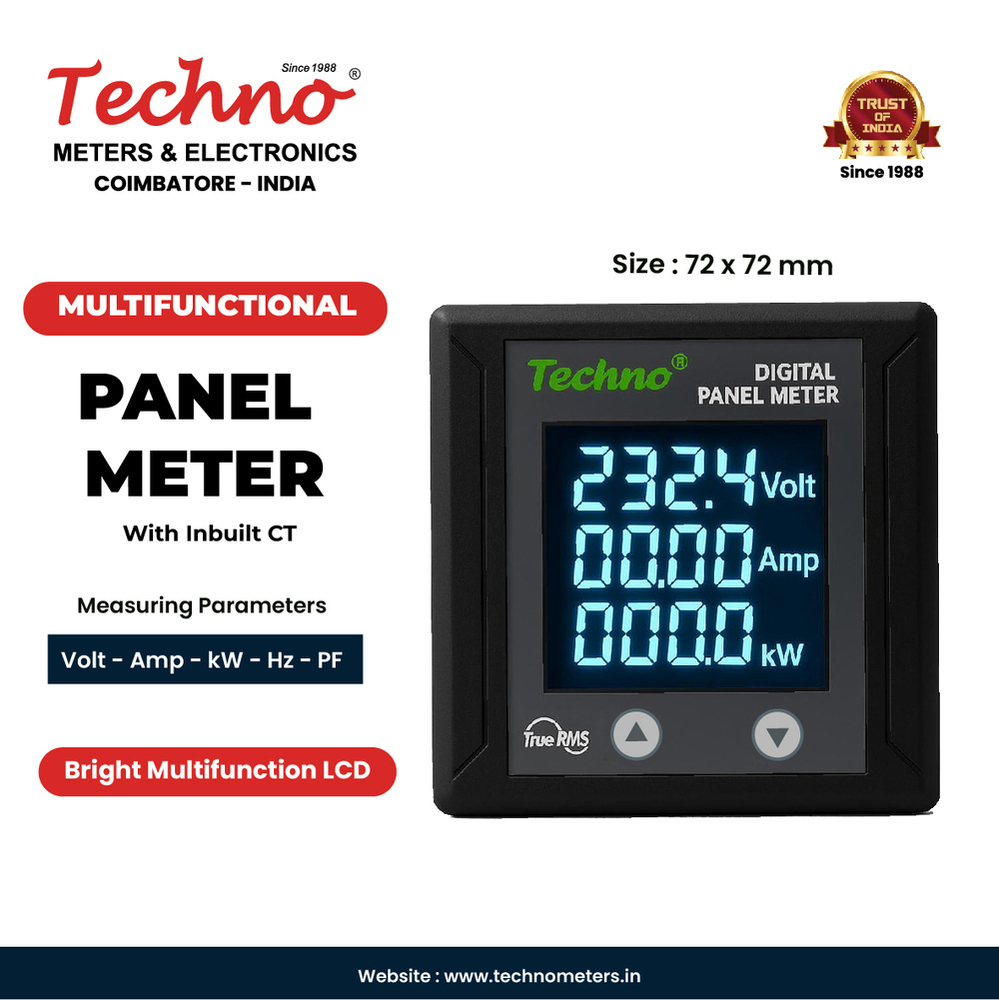

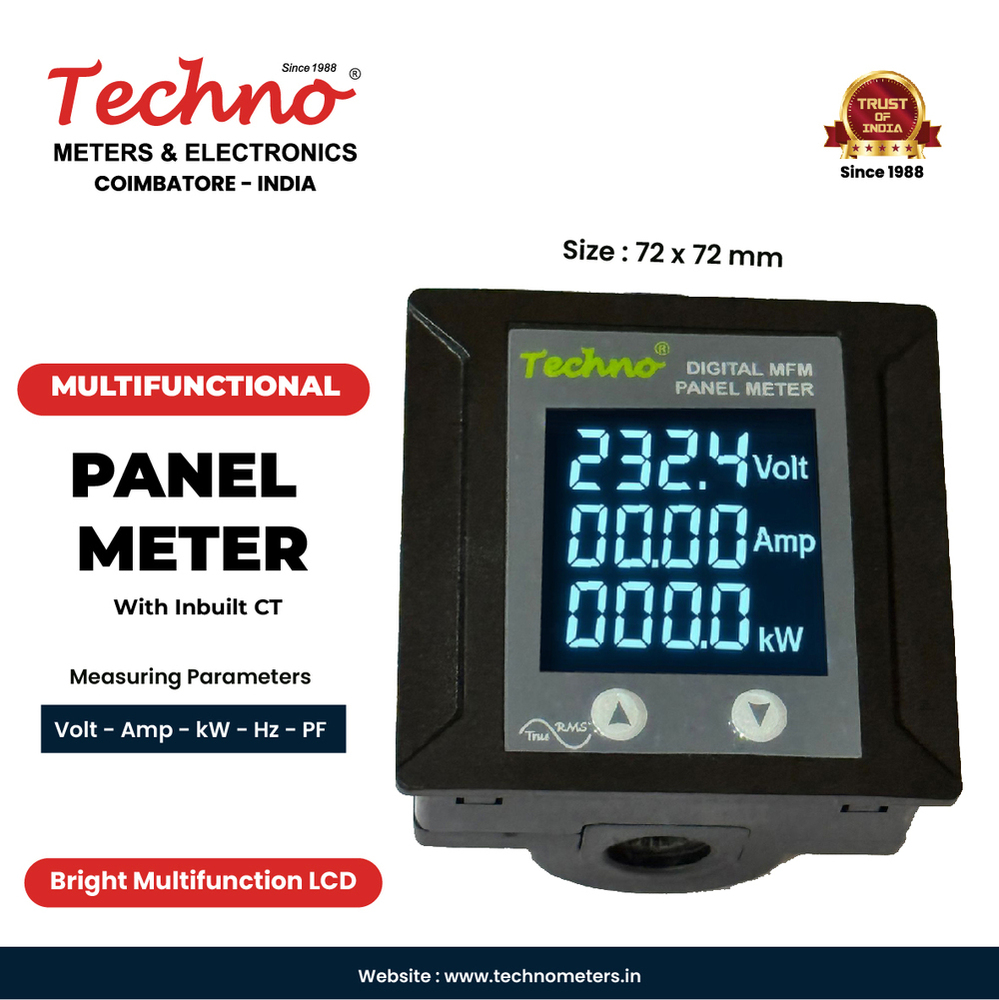

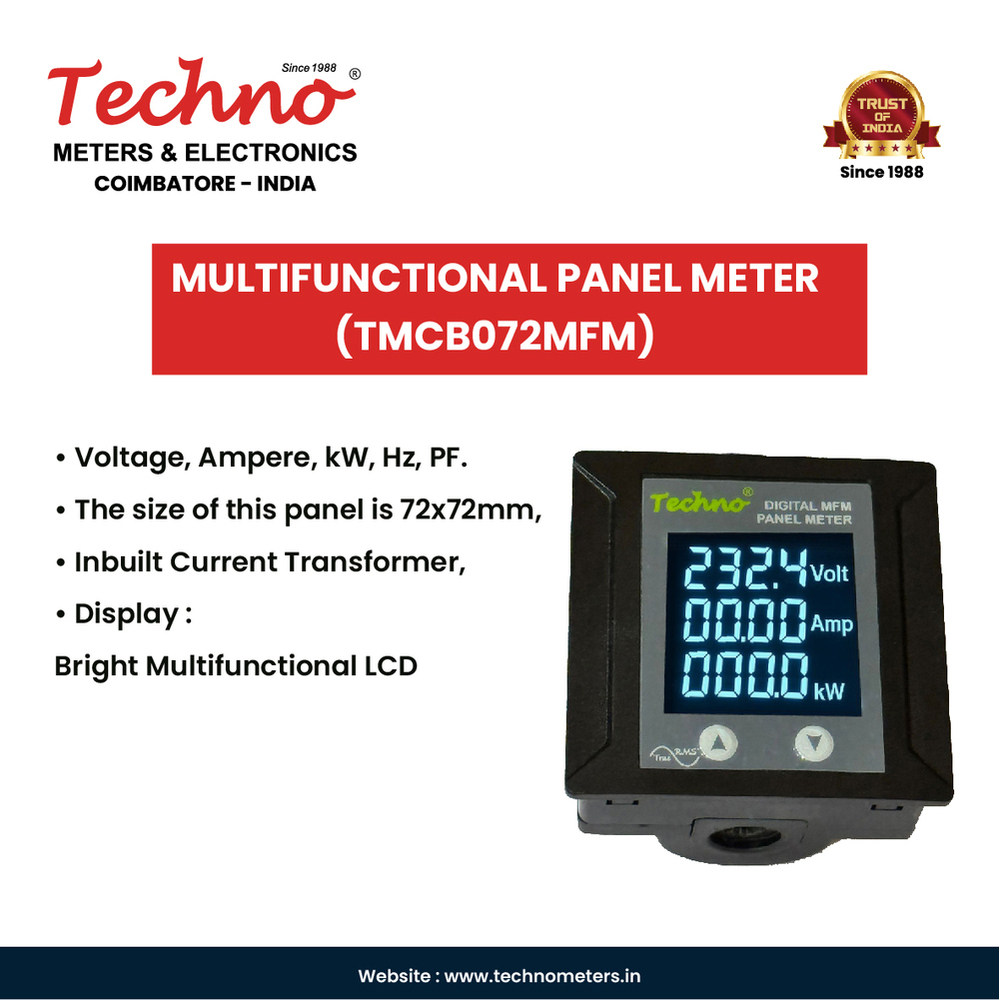

Multifunctional Panel Meter (TMCB072MFM) that measures
Voltage, Ampere, kW, Hz, PF.
The size of this panel is 72x72mm, Inbuilt Current Transformer,

Display : Bright Multifunctional LCD

Precise Multi-Parameter Monitoring

Easily track voltage, current, frequency, and power factor with high accuracy. The Vaf Pf Meter Class 1 uses True RMS measurement and high-speed digital sampling to ensure reliable readings across 0-500V, 0-5A, and 45-65Hz ranges, making it a dependable choice for critical electrical panels.

Durable and User-Friendly Design

Crafted from sturdy ABS plastic, the meter features a flush mounting system for clean integration into standard 96x96 mm panel cut-outs. The LCD display delivers clear indication even in demanding environments and its IP50 front panel protection is suited for industrial use across a wide temperature and humidity range.

FAQs of Vaf Pf meter Class 1 LCD Panel Meter:

Q: How is the Vaf Pf Meter Class 1 installed in an electrical panel?

A: The meter is designed for flush mounting within a standard 96x96 mm panel cut-out, enabling secure and neat installation in control panels commonly used for industrial and commercial applications.

Q: What parameters does the LCD panel meter display and with what measurement accuracy?

A: It displays voltage (0500V), current (05A via CT), frequency (4565Hz), and power factor, all measured with Class 1 accuracy for reliable performance in critical operations.

Q: When is the auto memory retention feature useful for this panel meter?

A: The auto memory retention ensures that parameter settings and some data are preserved after a power failure, providing seamless operation and consistent monitoring when power is restored.

Q: Where can this panel meter be deployed considering its design and protection rating?

A: It is well-suited for use in both industrial and commercial settings within control panels, thanks to its robust construction and IP50 protection on the front panel.

Q: What is the benefit of True RMS measurement in this Vaf Pf LCD panel meter?

A: True RMS measurement provides accurate readings even for non-sinusoidal or distorted waveforms, enhancing the reliability of the meters data in complex electrical environments.

Q: How is the Vaf Pf Meter powered and what is its power consumption?

A: The meter operates on a 230V AC, 50/60Hz power supply and consumes less than 5VA, making it an energy-efficient option for continuous electrical monitoring.
