Techno Single Phase Multi Purpose Energy Meter

Name: Techno Single Phase Multi Purpose Energy Meter
Brand: TECHNO METERS ELECTRONICS
Price: 420 INR
Availability: InStock

Price 420 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Techno Single Phase Multi Purpose Energy Meter Specification

Sensor Type
Current Transformer (Built-in)

Temperature Range
-10C to +55C

Current Range
5-60A

Diameter
Standard panel mounting

Connectivity Type
RS485 Modbus (Optional)

Capacity
Up to 60A direct connection

Humidity %
Up to 95% RH non-condensing

Application Media
Single Phase Energy Measurement

Frequency
50Hz 5%

Resolution
0.1 kWh / 1 Wh

Measurement Range
0-40A

Protection
IP51 (Front) / IP20 (Back)

Material
Industrial Grade Polycarbonate

Power Supply
230V AC, 50Hz

Power Consumption
<1.5W, <10VA

Accuracy
Class 1.0

Display Type
LCD Display

Range
00.000 to 99999.9 kWh

Equipment Type
Single Phase Multi Purpose Energy Meter

Voltage Range
176-276V

Display Digits
Five Digits + One Decimal

Output
Optical LED Pulse output

Dimensions (mm)
96 x 96 x 65

Mounting
DIN Rail / Panel Mounting

Data Storage
Non-volatile memory

Power Factor Display
Yes

Weight
Approx. 350g

Techno Single Phase Multi Purpose Energy Meter Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash Advance (CA)

Packaging Details
As Per Customer's Request

Main Domestic Market
All India

Certifications
ISO Certified Company

About Techno Single Phase Multi Purpose Energy Meter

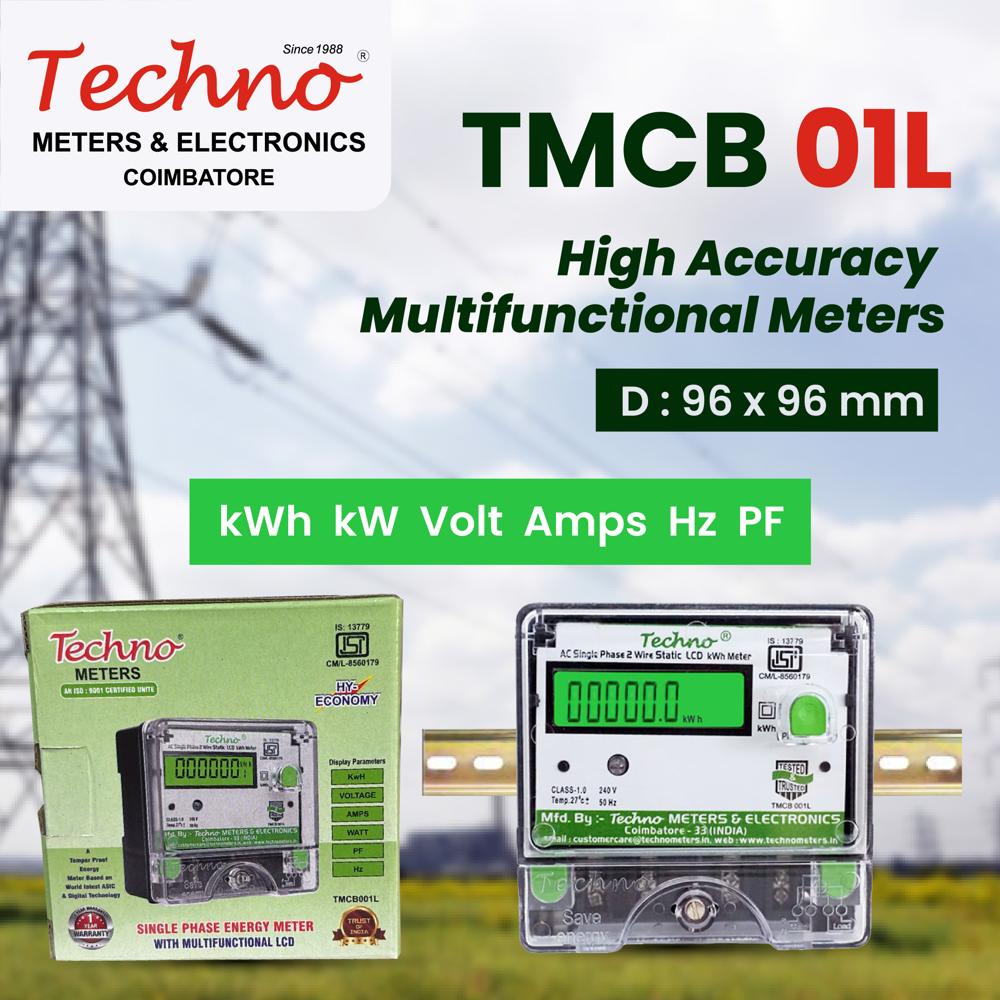

Techno Single Phase Electronics Energy Meters is capable for Multi Mounting option (Wall Mount, Din Mount, Panel Mount) & Showing Multifunctional Parameters with High Accuracy LCD Display (kWh, watt, Volt, Amps, Hz)

Efficient Monitoring and Data Storage

This energy meter provides real-time and accurate monitoring for single-phase power systems. Its non-volatile memory ensures all measured data is securely stored, even during power interruptions. The LCD display allows for easy reading of consumption and power factor, supporting efficient energy management and operational reliability.

Flexible Installation and Robust Protection

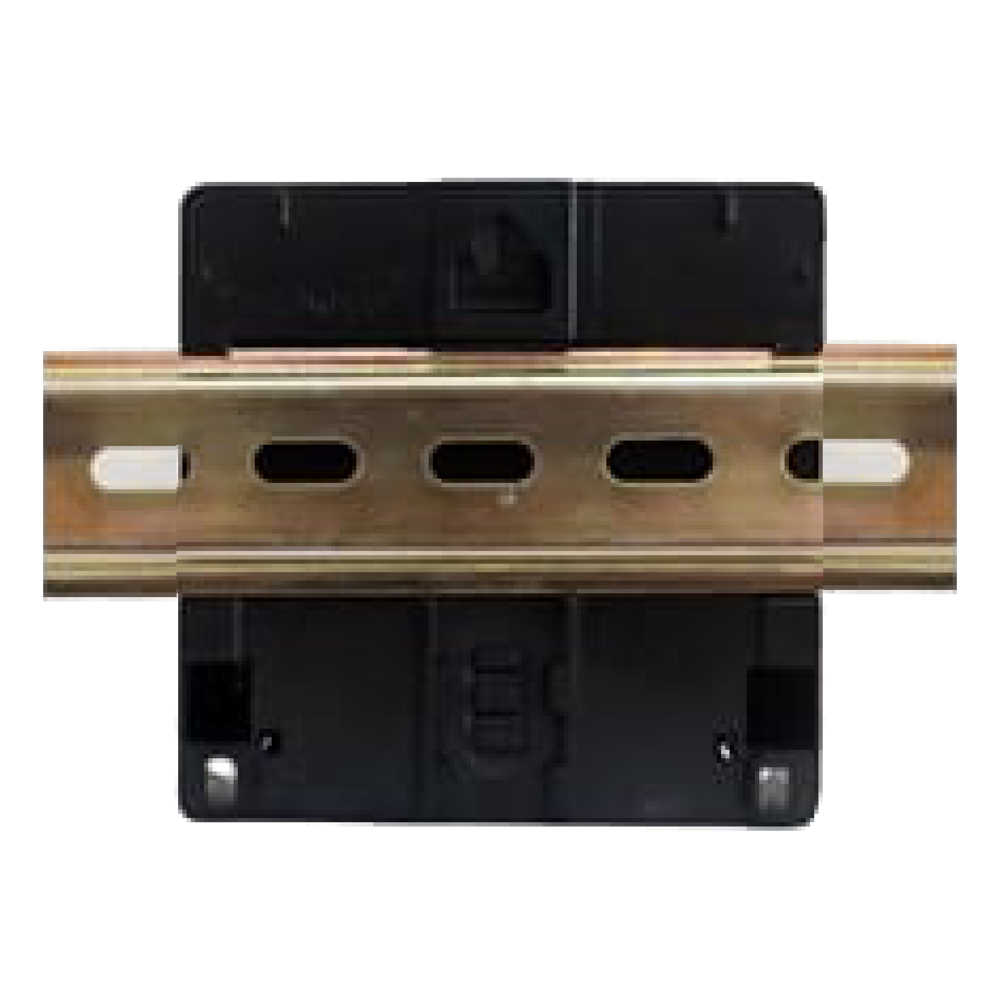

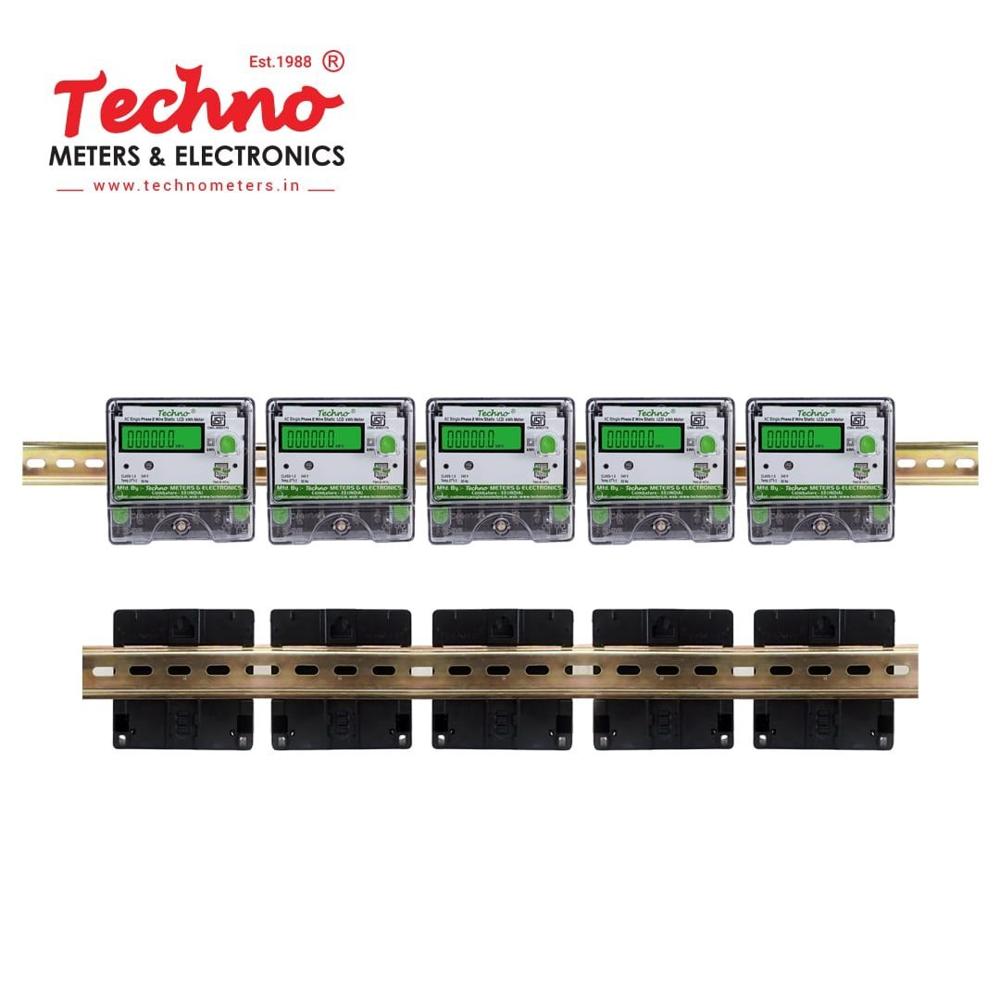

Engineered for ease of installation, this device supports both DIN rail and standard panel mounting, making it suitable for varied setups. Its industrial-grade polycarbonate housing and IP51 per front/IP20 per back protection enable reliable performance in demanding commercial and industrial situations, safeguarding internal components from dust and water ingress.

FAQ's of Techno Single Phase Multi Purpose Energy Meter:

Q: How is the Techno Single Phase Multi Purpose Energy Meter installed?

A: This energy meter supports DIN rail and panel mounting, allowing for straightforward integration into standard electrical panels or enclosures. Its compact dimensions (96 x 96 x 65 mm) ensure compatibility with most installation requirements.

Q: What data storage features does this meter provide?

A: The meter is equipped with non-volatile memory, which preserves all measured energy data and settings, even in the event of a power outage, ensuring reliable and consistent record-keeping.

Q: When should this meter be used, and what are the typical applications?

A: Designed for single-phase energy measurement, this meter is suitable for monitoring electrical consumption in homes, commercial complexes, and industrial facilities where accurate, real-time energy monitoring is required.

Q: Where can the measured data be accessed or exported?

A: Measured data is displayed on the LCD and can be exported through the optional RS485 Modbus connectivity, enabling integration with building management systems or remote energy monitoring solutions.

Q: What is the process for reading power consumption on this meter?

A: Simply check the clear LCD display, which indicates total power usage up to 99999.9 kWh, with high resolution (0.1 kWh/1 Wh). The display also shows power factor, providing comprehensive usage information at a glance.

Q: How does the meter ensure accurate and reliable measurement?

A: With Class 1.0 accuracy and compliance to IS 13779 and IEC 62053-21 standards, along with built-in current transformer sensors, the meter delivers precise readings within a current range of 5-60A and voltage range of 176-276V.

Q: What are the benefits of using this energy meter for energy management?

A: This meter offers real-time, precise consumption tracking, stored securely even when power is interrupted, easy installation, durable construction, and the possibility of integration with remote data systems-enabling more efficient and informed energy management.
