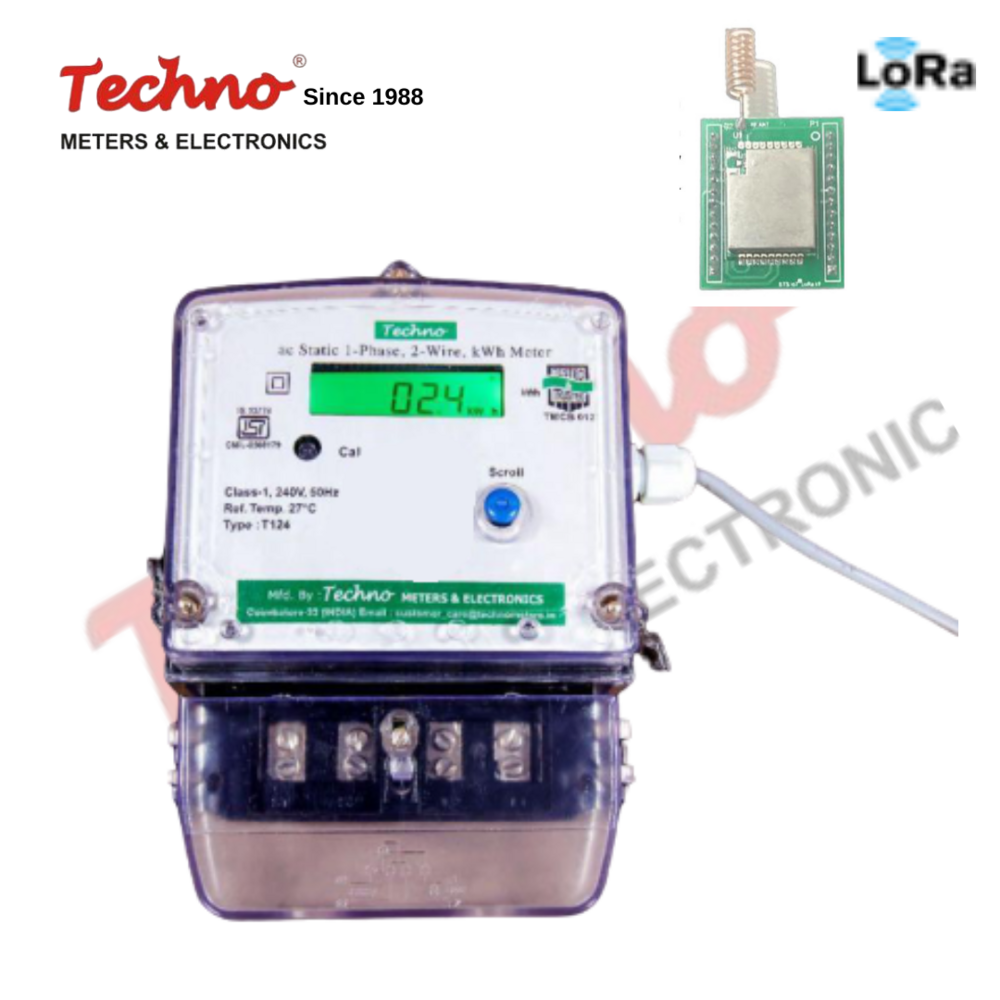

Single Phase Energy Meter with LoRa Module

Name: Single Phase Energy Meter with LoRa Module
Brand: TECHNO METERS ELECTRONICS
Price: 2400 INR
Availability: InStock

Price 2400 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

Single Phase Energy Meter with LoRa Module Specification

Resolution
High

Usage
Industrial

Material
Polycarbonate

Power Supply
AC

Product Type
Single Phase Energy Meter with LoRa Module

Weight
1 Kilograms (kg)

Accuracy
Class 1

Display Type
Digital Only

Single Phase Energy Meter with LoRa Module Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Month

Delivery Time
15 Days

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
As Per Industry Standard

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO Certification

Single Phase Energy Meter with LoRa Module About

SINGLE PHASE MULTIFUNCTIONAL ENERGY METER WITH INBULT LORA MODULE

GURANTEE TECHNICAL PARTICULARS OF AC SINGLE PHASE ELECTRONIC ENERGY METER WITH DUAL SOURCE AND PREPAID FUNCTION Sr. No Particulars Offered by firm 1. Name of manufactures 1 2. Type 3. Standard applicable 2 Is-13779 latest 4. Rated voltage 240v +20% to 40% 5. Rated current Basic current 10amps, maximum current 60amps 6. Frequency 50hz 5% 7. Power factor 0.5 lag- unity-0.866 lead 8. Completely type tested to is 13779 Yes 9. Minimum starting current in % of base current 0.4% of ib 10. Maximum continuous current 600% of ib 11. Power loss per phase (i) Voltage circuit (ii) Current circuit As per is 13779:1999 with latest amendments 12. Accuracy class Class 1.0 13. Change in error due to a. Variation in voltage, frequency b. Variation in temperature As per is 13779:1999 with latest amendments 14. Limit of accuracy As per is 13779:1999 with latest amendments 15. Insulation level As per is 13779:1999 with latest amendments 16. Test output for calibration & testing Red color led with high intensity 17. Type of register 1) No. Of digits 2) Backlit 5+1 digits (1decimal) Provided 18. Auto scroll parameter a. Cumulative forwarded kwh ( DG) b. Cumulative forwarded kwh (EB) 19. Push button mode a. Segment check b. Meter id c. Real date in dd/mm/yy d. Real time in hh/mm/ss e. Cumulative forwarded kwh (DG) f. Cumulative forwarded kwh (EB) g. DG Tariff set value h. EB Tariff set value i. DG Max load set value
