Single Phase Din Rail Mount Energy Meter

Name: Single Phase Din Rail Mount Energy Meter
Brand: TECHNO METERS ELECTRONICS
Price: 420 INR
Availability: InStock

Price 420 INR/ Piece

Get a Price/Quote

MOQ : 50 Pieces

Single Phase Din Rail Mount Energy Meter Specification

Usage & Applications
Suitable for residential, commercial, and industrial energy monitoring

Resistant Feature
Flame retardant and shock resistant casing

Product Type
Single Phase Din Rail Mount Energy Meter

Material
Plastic

Measuring Voltage Range
110V - 240V AC Volt (v)

Operating Temperature
-10C to +55C Celsius (oC)

Frequency (MHz)
50 Hertz (HZ)

Insulation Box
Yes, provided for enhanced electrical safety

Protection System
Overload and short-circuit protection built-in

Size
Compact and suitable for DIN rail mounting

Color
Black

Dimension (L*W*H)
Approx. 100mm x 18mm x 63mm Millimeter (mm)

Weight
120g Grams (g)

Warranty
1 Year

Current Measurement Range
Up to 40A

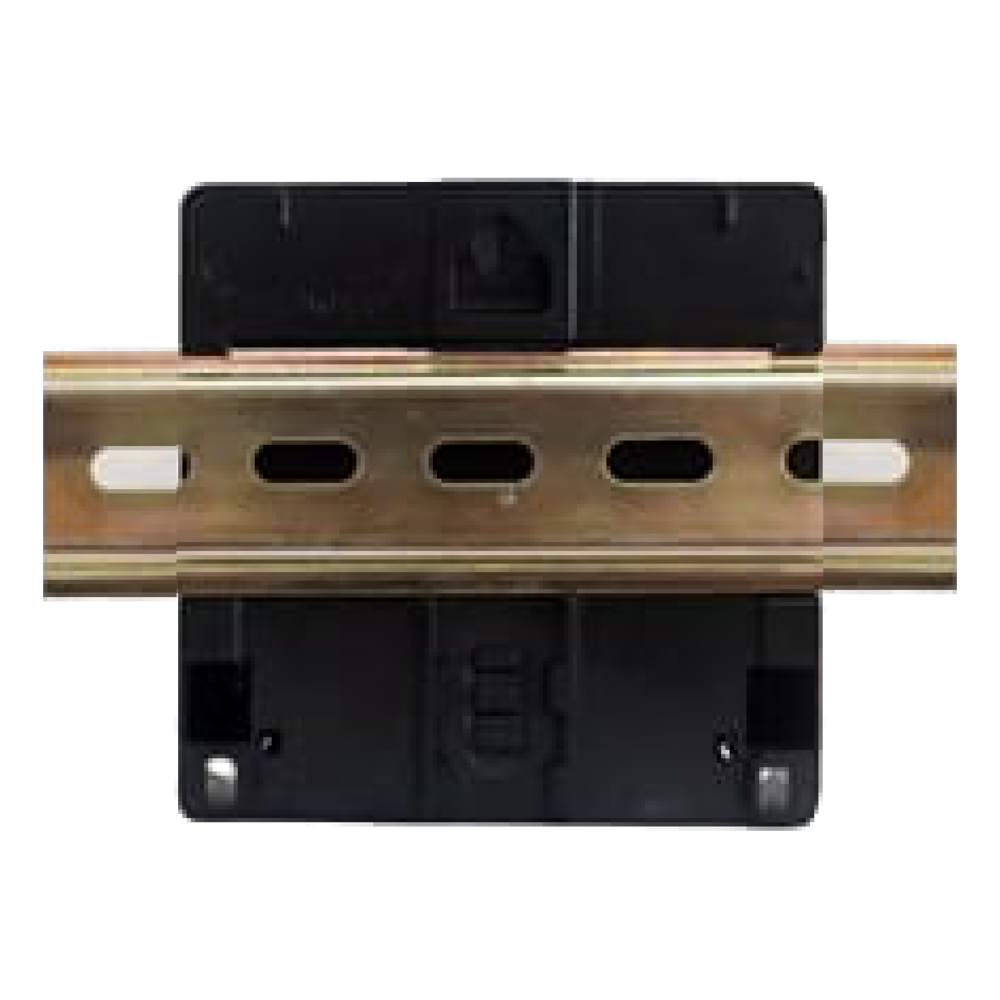

Mounting Type
DIN rail

Power Consumption
< 2W

Display Type
Digital LCD

Data Output
Pulse output compatible with AMR/AMI systems

Single Phase Din Rail Mount Energy Meter Trade Information

Minimum Order Quantity
50 Pieces

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Supply Ability
1000 Pieces Per Month

Delivery Time
10 Days

Packaging Details
As Per Customer's Request

Main Domestic Market
All India

Certifications
ISO

About Single Phase Din Rail Mount Energy Meter

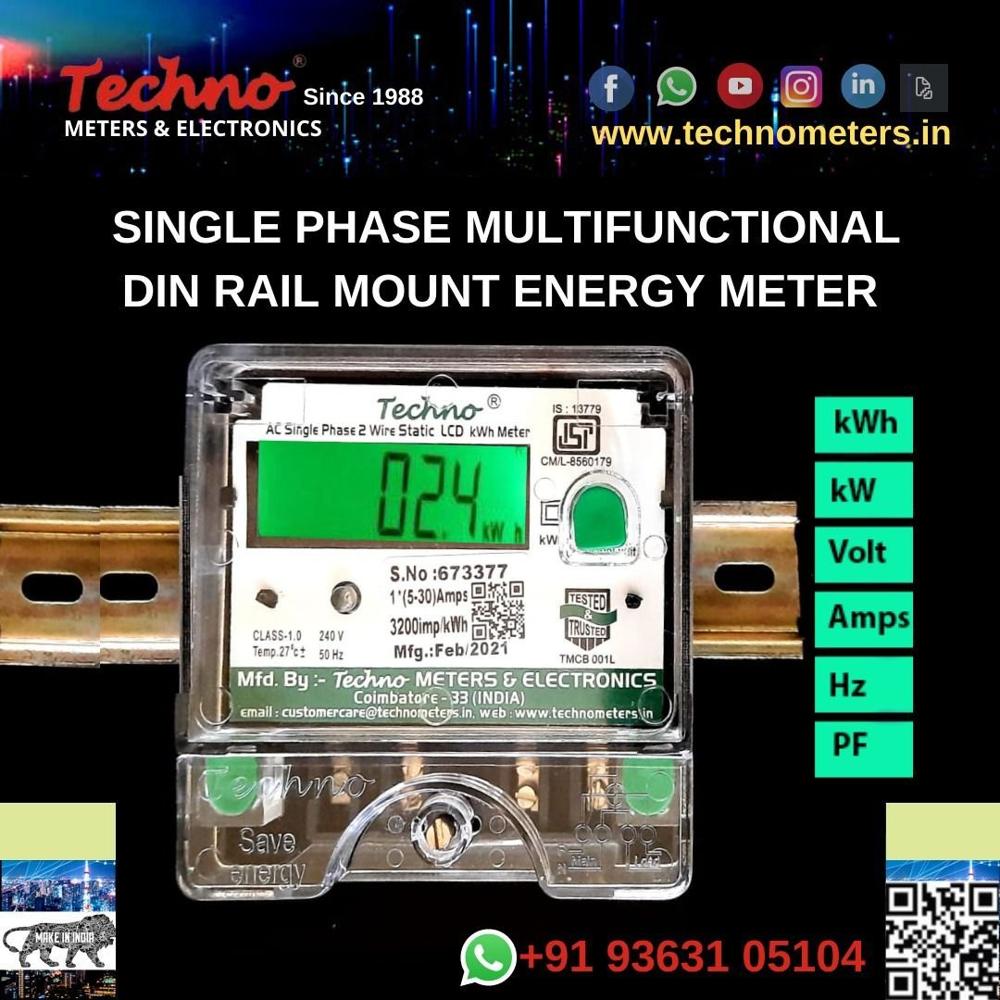

Techno Single Phase Electronics Energy Meters is capable for Multi Mounting option (Wall Mount, Din Mount, Panel Mount) & Showing Multifunctional Parameters with High Accuracy LCD Display (kWh, watt, Volt, Amps, Hz)

Advanced Energy Monitoring

Enjoy accurate monitoring of electrical consumption with the built-in digital LCD display. The meters pulse output enables seamless integration into AMR/AMI systems for automated reading and management, making it an optimal solution for utilities, property managers, and facility operators.

Enhanced Safety Features

Safety is prioritized with the inclusion of an insulation box, overload, and short-circuit protection. The meters casing is both flame-retardant and shock-resistant, providing additional protection in demanding environments. These features ensure reliable performance while minimizing risks.

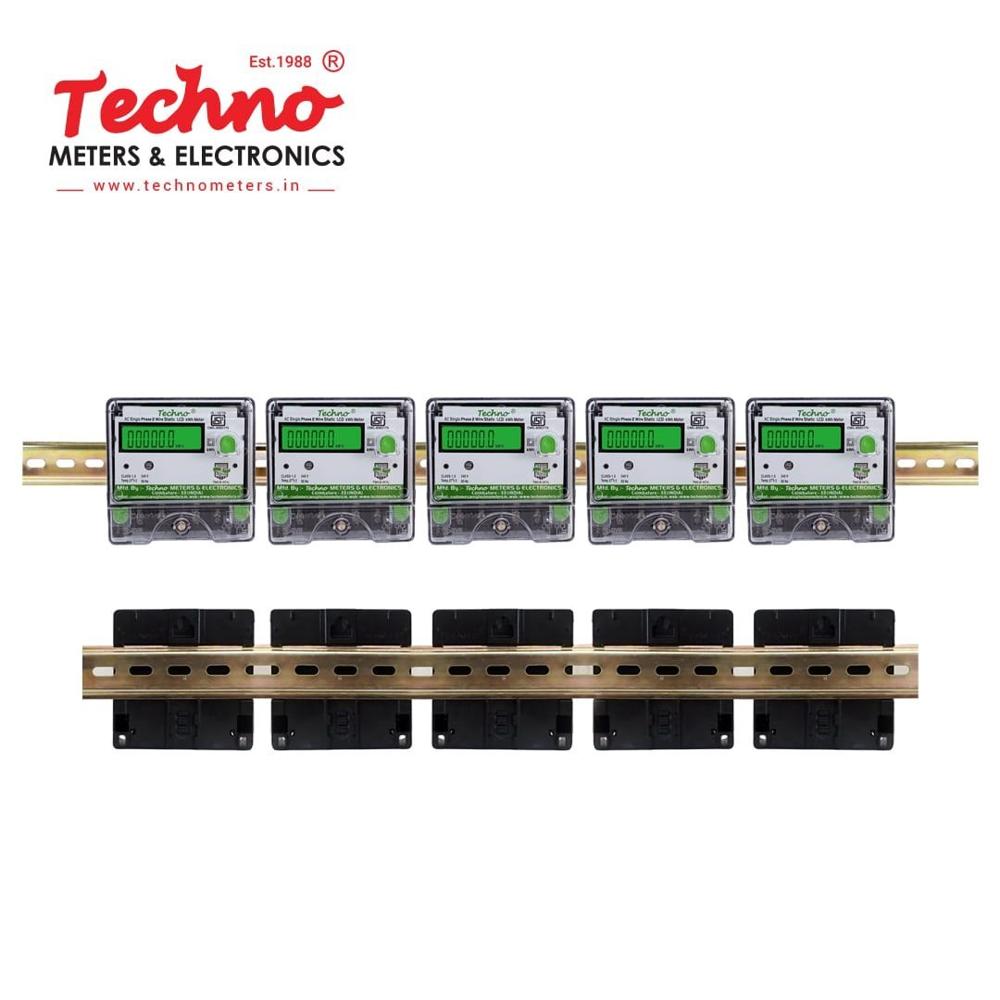

Flexible and Compact Design

Designed for DIN rail mounting, the meters compact size (100mm x 18mm x 63mm) allows easy installation in tight spaces. Its lightweight build (120g) and durable plastic material make it versatile for applications ranging from homes to industrial facilities. Operating between -10C and +55C, it adapts to varied climatic conditions.

FAQs of Single Phase Din Rail Mount Energy Meter:

Q: How is the Single Phase DIN Rail Mount Energy Meter installed?

A: The meter is designed for DIN rail mounting, allowing straightforward installation in distribution boards. Simply clip the compact unit onto a standard DIN rail and connect it according to the wiring guidelines provided.

Q: What type of data output does this energy meter support?

A: It features a pulse output compatible with AMR/AMI systems, which allows for remote and automated data collection and integration into energy management solutions.

Q: When should I use this meter in my electrical system?

A: This energy meter is suitable whenever precise energy consumption monitoring is needed, such as in residential, commercial, or industrial settings. Its overload and short-circuit protection make it ideal for environments requiring enhanced electrical safety.

Q: Where can this energy meter be installed?

A: The device is appropriate for use in homes, offices, shops, and industrial facilities where DIN rail mounting is available. Its compact design ensures it fits easily into standard electrical panels.

Q: What process is involved in reading the meters data?

A: The energy data is displayed on a digital LCD screen for manual reading. For automated monitoring, the pulse output can be linked to AMR/AMI systems, enabling remote data access.

Q: How does the built-in safety mechanism benefit users?

A: With integrated insulation, flame-retardant casing, overload, and short-circuit protection, the meter safeguards users and equipment from electrical hazards, delivering reliable and secure operation.

Q: What are the benefits of using this energy meter in my application?

A: The meter offers high accuracy (Class 1.0), low power consumption, robust safety features, and easy integration with energy management systems through AMR/AMI compatibility, enhancing both convenience and safety.
