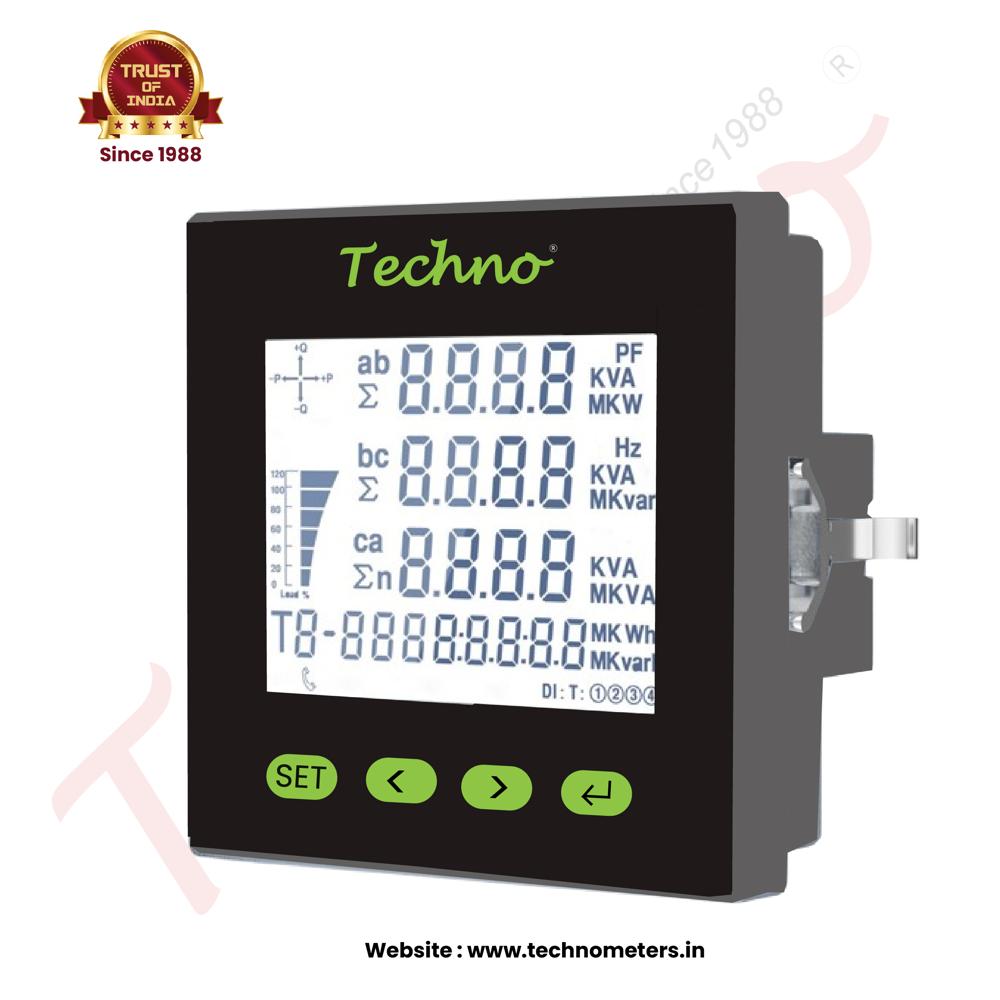

3 Phase Techno LT TVM Meter

Price 2860.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

3 Phase Techno LT TVM Meter Specification

Equipment Type
Three Phase LT TVM Meter

Connectivity Type
RS232/RS485 Optical Port

Capacity
10-100A Direct / CT Operated

Temperature Range
-10C to +60C

Resolution
0.01 kWh

Frequency
50Hz 5%

Sensor Type
Electronic, Static

Measurement Range
Voltage: 0-600V, Current: up to 100A

Protection
IP54/55 Enclosure Protection

Application Media
Energy Metering

Humidity %
Up to 95% RH non-condensing

Current Range
10-100A

Material
Polycarbonate / Flame Retardant Engineering Plastic

Power Supply
3 x 230/415V AC, 50Hz

Power Consumption
<2W, <10VA

Accuracy
Class 0.5s / Class 1.0

Display Type
LCD Digital Display

Range
Suitable for 3 Phase 4 Wire Systems

3 Phase Techno LT TVM Meter Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash Advance (CA)

Packaging Details
As Per Customer's Request

Main Domestic Market
All India

Certifications
ISO Certified Company

About 3 Phase Techno LT TVM Meter

The three-phase multi-function meter is designed for the electric power intelligent monitoring and electric energy metering needs of electric power system, industrial and mining enterprises, public facilities, intelligent buildings and so on, high-precision measurement of all common power parameters in three-phase grid: three-phase voltage, three-phase current, active power, reactive power, apparent power, frequency, power factor, and with 485 communication function

Comprehensive Tamper and Data Security

This meter incorporates multiple tamper detection features, such as magnetic field detection, cover open alerts, neutral disturbances, and reverse polarity notification. With terminal and meter body double sealing, plus secure data storage via non-volatile memory, your metering infrastructure is protected against manipulation and data loss.

Versatile Mounting and Connectivity Options

Depend on the flexibility of wall or panel mounting to suit diverse installation environments. The meter offers both RS232/RS485 and optical port connectivity, making it ideal for integration with modern AMR/AMI systems. Its DLMS/IEC protocol compliance ensures standardized communication in both residential and industrial applications.

User-Friendly Operation and Maintenance

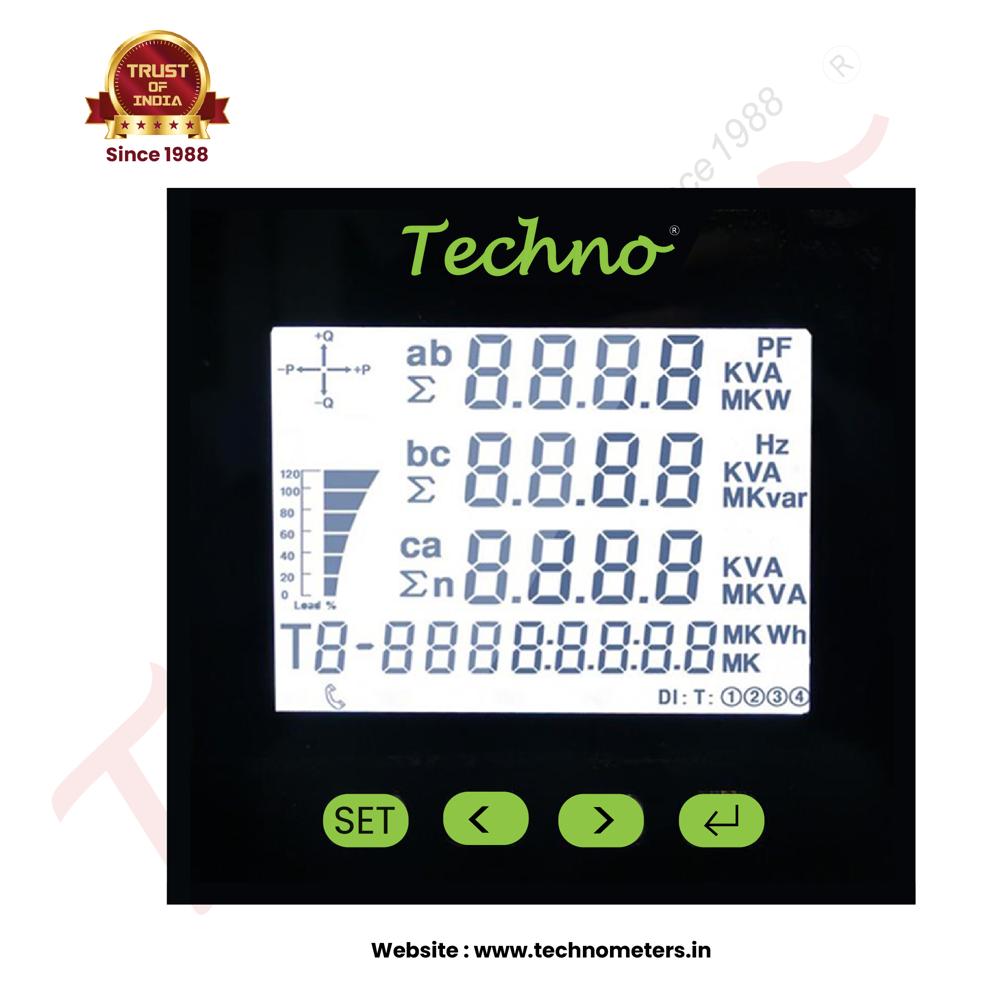

An intuitive LCD digital display provides clear readouts of essential parameters, including kWh, reverse direction, earth faults, and communication status. LED indications further enhance usability. Routine maintenance is simplified thanks to its battery-backed real time clock and upgradeable firmware, facilitating long-term, hassle-free operation.

FAQ's of 3 Phase Techno LT TVM Meter :

Q: How is the 3 Phase Techno LT TVM Meter typically installed?

A: The meter is designed for flexible installation and can be mounted either on a wall or within a panel, accommodating various site requirements and ensuring optimal accessibility.

Q: What tamper detection features does this meter provide?

A: The meter offers advanced tamper detection, including magnetic field sensing, cover open alerts, neutral disturbance notifications, and reverse polarity detection to prevent unauthorized manipulation and improve security.

Q: When does the meter capture and store load profile data?

A: It continuously records load profile data in its non-volatile memory for over 35 days, ensuring that energy usage information is safely stored even in the event of power interruptions.

Q: Where can this meter be used?

A: The meter is suitable for both utility and industrial settings that require precise three-phase energy measurement, supporting a voltage range up to 600V and a current range from 10A to 100A.

Q: What is the process for upgrading the meter's firmware?

A: Firmware upgrades are handled electronically via the meter's communication ports, allowing users to update functionalities and security features without having to replace the meter.

Q: How does the meter benefit energy monitoring and management?

A: With high accuracy (Class 0.5s or 1.0), real time clock, TOU metering, load profiling, and robust tamper prevention, this meter enables reliable and efficient energy monitoring, aiding in effective consumption analysis and loss reduction.
