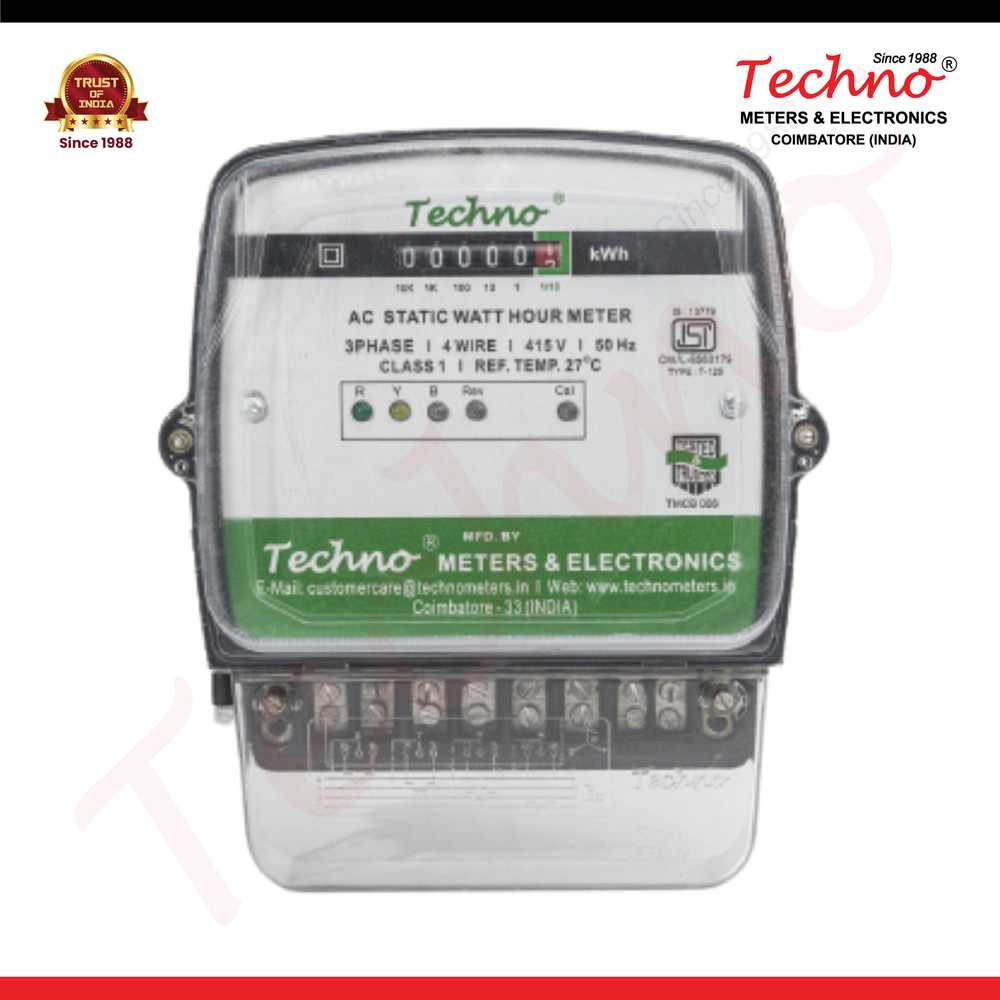

3 Phase Electronic Energy Meter Counter - Type Display

Name: 3 Phase Electronic Energy Meter Counter - Type Display
Brand: TECHNO METERS ELECTRONICS
Price: 1150 INR
Availability: InStock

Price 1150 INR/ Piece

Get a Price/Quote

MOQ : 60 Pieces

3 Phase Electronic Energy Meter Counter - Type Display Specification

Connectivity Type
Terminal block (screw connection) or Optical port (optional)

Measurement Range
Voltage: 3 x 230/400V, Current: 1-100A

Resolution
0.01 kWh

Frequency
50/60 Hz Hertz (HZ)

Humidity %
Up to 95% RH (non-condensing)

Equipment Type
3 Phase Electronic Energy Meter Counter - Type Display

Temperature Range
-10C to +55C Celsius (oC)

Sensor Type
Shunt/C.T. based

Current Range
1 - 100A Ampere (A)

Usage
Industrial

Material
Polycarbonate/ABS enclosure

Power Supply
Electric

Product Type
3 Phase Electronic Energy Meter Counter - Type Display

Color
Black

Display Type
Digital Only

Range
0 999999.99 kWh (Typical)

Data Storage
Non-volatile memory, data retention >10 years

Mounting Type
DIN Rail / Panel Mount

Pulse Output
Available (energy pulse LED and terminal)

Protection
IP51/IP54 (front) enclosure

Compliant Standard
IS 13779/IEC 62053-21

Burden
<2W per phase

Dimensions (W x H x D)
Approx. 170 x 110 x 68 mm

3 Phase Electronic Energy Meter Counter - Type Display Trade Information

Minimum Order Quantity
60 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
10 Days

Main Export Market(s)
Asia

Main Domestic Market
All India

About 3 Phase Electronic Energy Meter Counter - Type Display

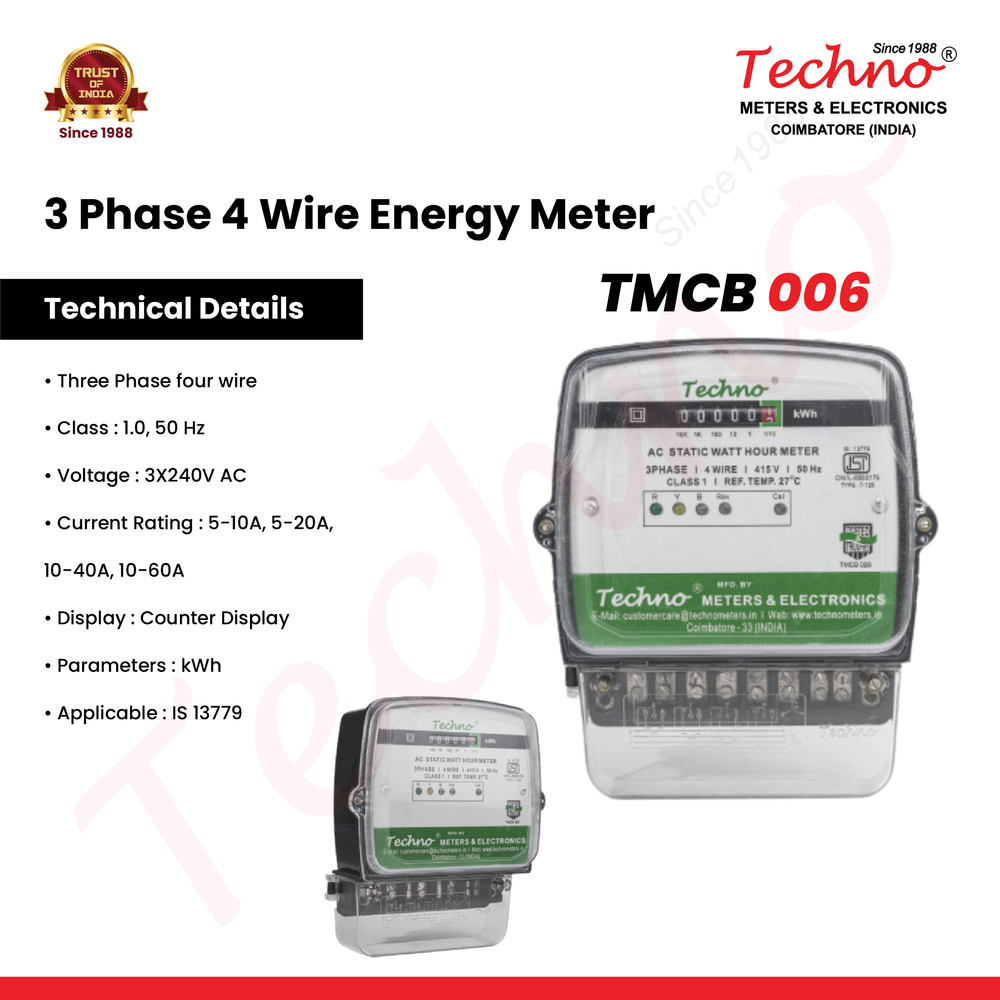

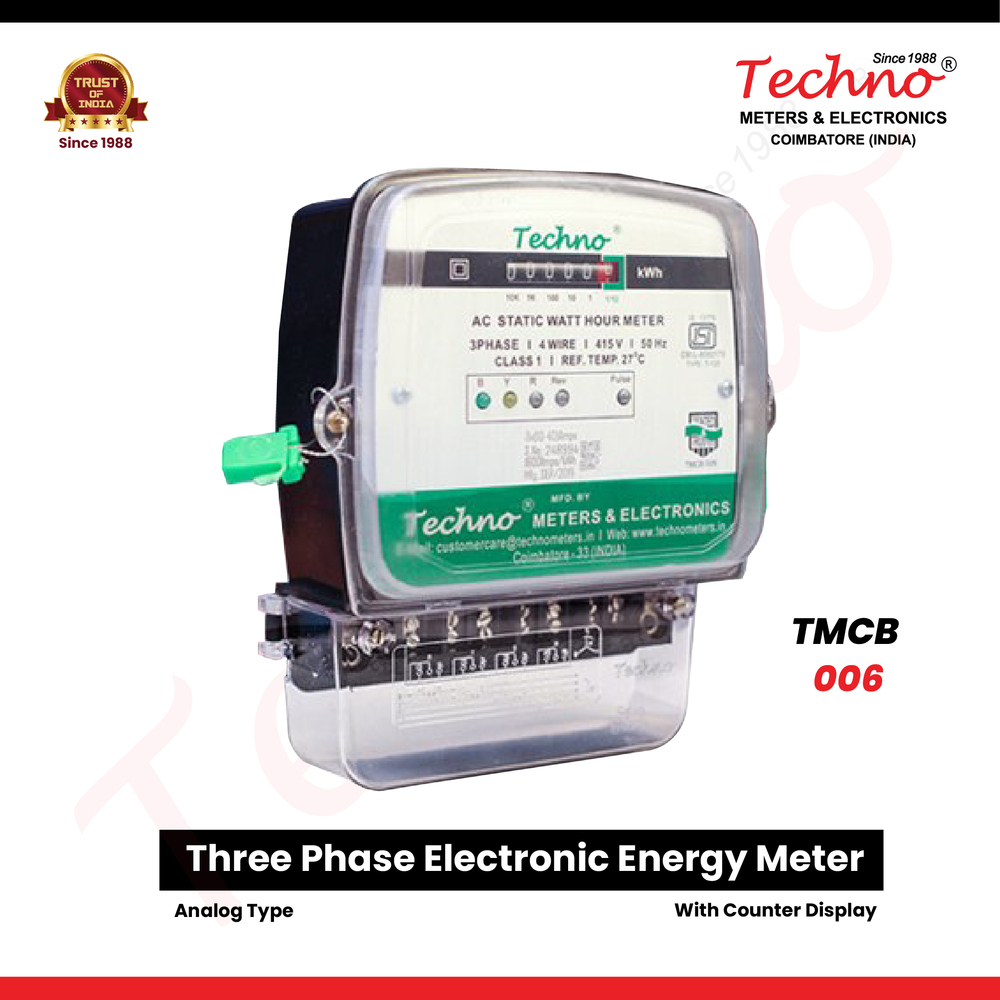

Specification: Three Phase four wire Class: 1.0, 50Hz Voltage: 3x240V AC Current Rating: 10-40A, 10-60A,/5A (CT operated) Display type: stepper motor counter Parameters : Kwh(As per Customer Request Also Available*) Applicable: IS 13779

Versatile Mounting and High Reliability

Designed for flexibility, this energy meter supports both DIN rail and panel mount installations, adapting effortlessly to various industrial setups. The enclosure offers IP51/IP54 protection (front), safeguarding against dust and water splashes. Its durable polycarbonate/ABS build ensures longevity even under demanding environmental conditions.

Precision Measurement and Data Security

Benefit from high-accuracy measurement (Class 1.0 or 0.5) over a current range of 1-100A per phase. With a resolution of 0.01 kWh, the digital-only display enables precise monitoring. Non-volatile memory ensures secure data retention exceeding 10 years, supporting consistent energy management and regulatory compliance.

User-Friendly Outputs and Connectivity

The device features a clear energy pulse LED and terminal for monitoring, plus terminal block (screw connections) or optional optical port for easy data access. These features facilitate seamless integration with energy management systems and enhance usability for facility technicians.

FAQs of 3 Phase Electronic Energy Meter Counter - Type Display:

Q: How do I install the 3 Phase Electronic Energy Meter Counter in my industrial facility?

A: You can mount this meter either on a DIN rail or by panel mounting, making it suitable for new or retrofit installations. Ensure secure wiring on the terminal block following the manufacturers instructions for safe and accurate operation.

Q: What standards does the energy meter comply with and why is this important?

A: This meter is compliant with IS 13779 and IEC 62053-21 standards, which specify performance, accuracy, and safety for electronic meters. Compliance assures you of accurate measurements and reliable long-term operation, meeting regulatory and industrial requirements.

Q: When can I expect the data stored by the meter to be lost?

A: Data loss is highly unlikely since the meter uses non-volatile memory, retaining energy consumption data for over 10 years even in the event of power outages or disconnections.

Q: Where can the meter be used with respect to environmental conditions?

A: It is suitable for typical industrial environments, operating reliably between -10C and +55C, with up to 95% RH (non-condensing). The enclosures IP51/IP54 rating protects it from dust and water splashes, especially on the front panel.

Q: What is the process for reading energy consumption data from the meter?

A: The meter provides a digital-only display that shows real-time energy readings with a resolution of 0.01 kWh. Additionally, energy pulse output and optional optical port allow integration or remote data collection for use with advanced energy monitoring systems.

Q: How does the pulse output benefit industrial users?

A: The pulse output (via LED and terminal) provides a visual or electronic signal in proportion to the measured energy, enabling easy interfacing with external monitoring and building management systems for instantaneous consumption tracking and automation.
